Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Name: Precision Automotive Steel Tubes En103051 Ready to Honed steel pipes
Brand: Torich
Price: 1200 USD

Ask Lasest Price
Brand Name :	Torich
Model Number :	EN10305-1
Certification :	ISO 9001 ISO14001 TS16949
Price :	1200-1400USD/ton
Payment Terms :	L/C, T/T
Supply Ability :	5000tons per year
Delivery Time :	5-8 week days

Add to Cart

Product Details
Company Profile

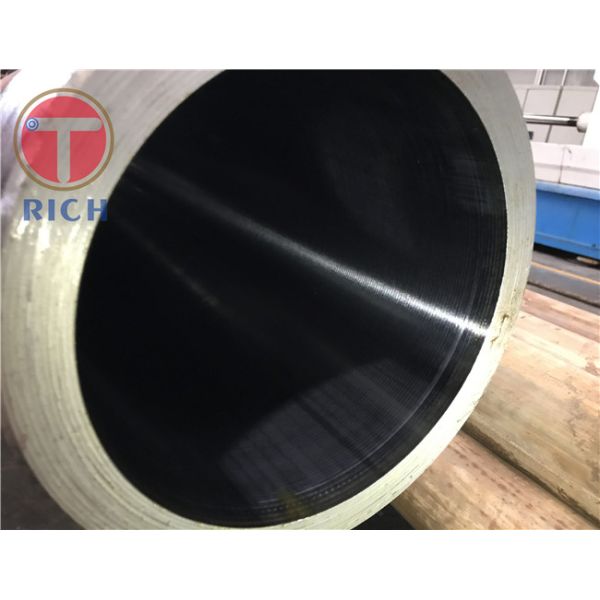

Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Standard: EN10305-1 ASTM A519 GB/T3639 DIN2391 JIS G3445
Material:E235/ SAE1020/ SAE 1045 /10 # 20# 45#/ /DIN ST52/STKM 11A /STKM12B
Straightness:1/1000m
Tolerance: OD≤0.08mm WT:≤+/-0.15
Improve the precision with method: Cold drawn/DOM

Product Feature:
1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )

Chemical composition %(Max)	C	Si	Mn	P	S
E235	0.22	0.55	1.60	0.025	0.025
SAE1020	0.18-0.23		0.30-0.60	0.04	0.05
SAE 1045	0.43-0.50		0.60-0.90	0.04	0.05
10 #	0.07-0.13	0.17-0.37	0.35-0.65	0.035	0.035
20#	0.17-0.23	0.17-0.37	0.35-0.65	0.035	0.035
45#	0.42-0.50	0.17-0.37	0.50-0.80	0.035	0.035
St52	0.22	0.55	1.6	0.25	0.025
STKM 11A	0.12	0.35	0.6	0.04	0.04
STKM12B	0.20	0.35	0.6	0.04	0.04

1.+C /BK	No heat treatment after final cold drawing process.
2.+LC/BKW	After the final heat treatment there's a suitable drawing pass.
3.+SA/BKS	After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.
4.+A/GBK	After the cold drawing process the tubes are annealed in a controlled atmosphere.
5.+N/NBK	After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

Annealing /+A/GBK Bright Annealing/+N/NBK

Items & Condition
Delivery: 30-45days
Payment : T/T. LC.Alibaba Tade Assurance Order
Packaging: In Hexagonal bundles ,Wooden boxes packaging.
Quantity tolerance: +/-10%
Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
Mill Test Certificate:EN10204 3.1

Application:

. Automotive components

. Tubes for structural applications
. Standard mechanical tubing
. Hydraulic Cylinder Applications
. Heavy Equipment And Agriculture
