Product Description
| Material | High chromium carbide overlay wear plate |
| Thickness | 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10 12+4 12+6 12+8
12+10 14+6 14+8 14+10 16+6 16+8 16+10 16+12, etc. Or as customized |
| Weldable Thickness | 3-20mm |
| Hardness | HRC 52-62 Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60 Wear deposite 5mm: HRC 58-62, 6mm: HRC 58-62 Wear deposite 8mm: HRC 58-62, 10mm: HRC 60-62 Wear deposite 12mm: > 62 HRC |
| HRC of 1st layer :52-58; HRC of 2nd layer: 58-62; HRC of Pure weld deposite: 62 |
| Surface Treatment | Hardfacing clading coated. |
| Technique | Advanced automatic self-shilded open arc welding |
| Chemical Composition | Take 6+6 abrasion composite plate wear deposite for example: C : 4.3-4.8% Cr : 23-30% Mn : 0.8-1.1% Mo: 0.08-0.18 Ni:0.08-0.15, Other Metal elements : Micro |
| Base Plate | Q235B, All weldable steels, mostly structural steels. |
| Feature | High wear resistance
12-20 times higher than common plate
5-10 times than low alloy steel plate
2-3 times than high chromium cast iron plate |

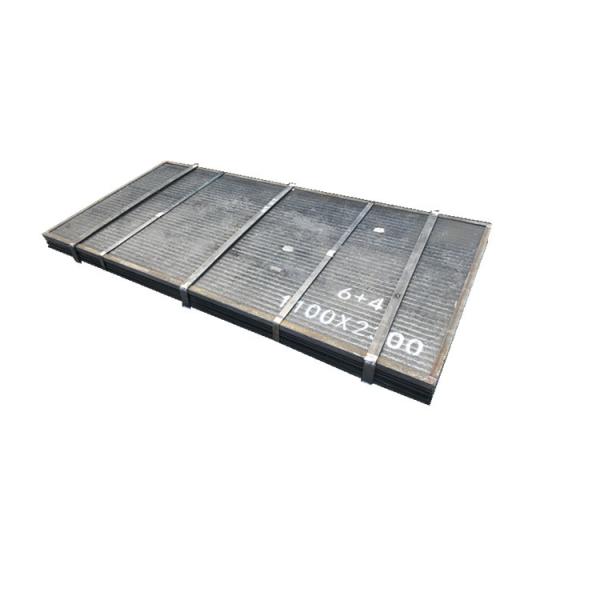

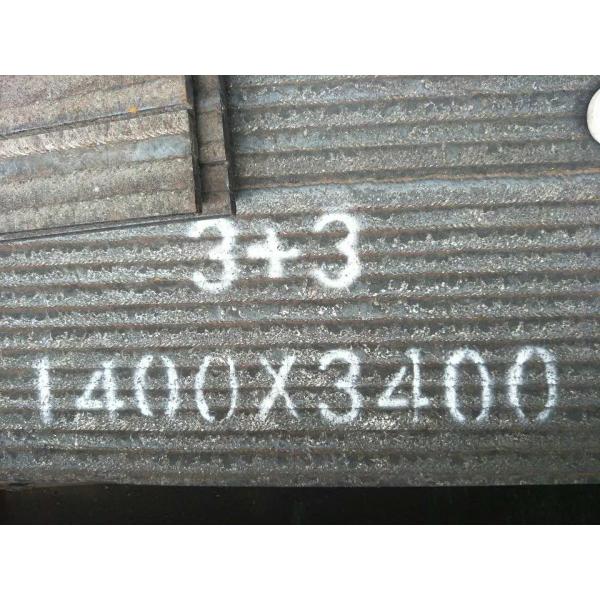

Product pictures
Application
1. Electric power industry - fan blades, burner pipelines, feed
chute and hopper liners, crusher parts, coal mill parts, ash
discharge pipes, air handling systems and conveyors;
2. Iron and steel industry - hopper lining, grille, feeder and
base, dump truck, hopper, pipeline, pump casing, crusher parts,
slag trough, various chassis, vibrating screen;
3. Cement industry - impact disc, pipeline, pump casing, mill
lining, crusher parts, slag trough, various chassis, vibrating
screen;
4. Paper industry - cyclone lining, screw conveyor, feed trough and
funnel, fan blade, conversion duct, transition elbow;
5. Mining industry - truck trough lining, hopper lining, feeding
trough lining, crusher parts, cover plates, wear bars and wear
plates;
6. Coal processing industry - troughs, hoppers, crusher parts and
linings, coal pipelines, elbows, pump bodies.
Processing
1: Punched straight hole and countersunk head hole.
2: Back load welding bolts can be pre-processed bolts embedded in
the wear-resistant composite steel plate on the substrate.
3: bending and winding shield wear - resistant composite steel
plate can be cold processed into curved or tapered surface.
4: welding shield wear - resistant composite steel plate can be
welded, assembled into a variety of wear - resistant parts.

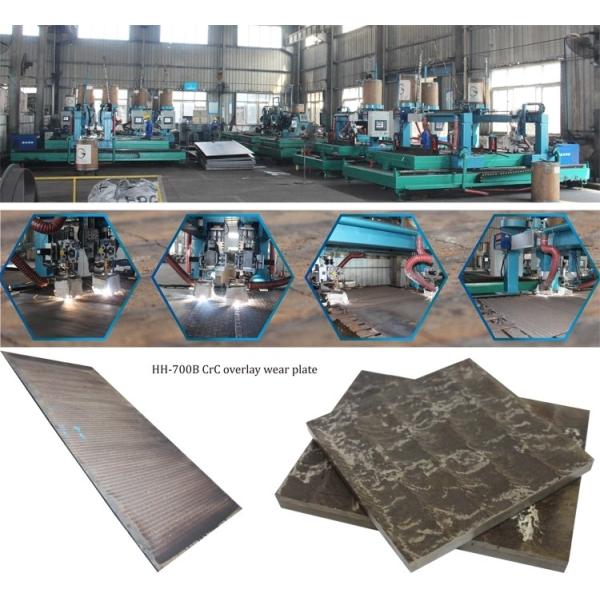

Workshop
Package
Packing method:
1) Bundles packing with steel strip.
2) As customer request
Delivery :
Loading Port: Qingdao, Tianjin or your request.
Delivery time: Normal size, 7-10 days
20ft container load 26tons, length ≤5.8m
40ft container load 26tons, length ≤11.8m
If the weight more than 100tons, there is another way to transport
by bulk.
Company
Shandong Kai steel company
Located in Shandong province. In order to meet customer request of
product variety,we established long term friendly cooperation with
famous domestic mill plants. With good reputation in Europe,
Southeast Asia, Middle East, South America and Africa,our annual
export volume twenty-five million dollars,about forty percentage of
total sales,especially our Wear Resistant Steel Plate, Weathering
Steel Plate, High Strength Carbon Steel Plate are popular with
Southeast Asia, Middle East customer .
Our customers cover Middle East,Europe, Southeast Asia, South
America and Africa and many other countries and regions. Customers
who visited our company is countless.Our products have won the
world wide praise among our customers . Now, We are more and more
famous in the steel industry.
