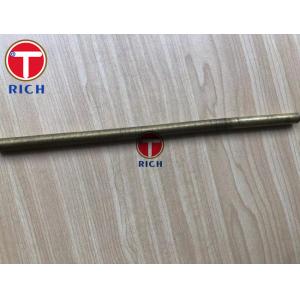

for Heat Exchanger C10200 Copper Low Fin Tube

Name: for Heat Exchanger C10200 Copper Low Fin Tube
Brand: Torich
Price: 10 USD

Ask Lasest Price
Brand Name :	Torich
Model Number :	Low Fin Tube
Certification :	ISO9001 TS16949
Price :	10-30USD/pc
Payment Terms :	L/C, T/T
Supply Ability :	50000 tons per year
Delivery Time :	5-8 week days

Add to Cart

Product Details
Company Profile

for Heat Exchanger C10200 Copper Low Fin Tube

Products Description:

for Heat Exchanger C10200 Copper Low Fin Tube

Quick Detail:

Low Finned Tubes add short fin in the tube wall that greatly increase the surface area over smooth tube. The fins are formed into the tube wall so the outside diameter of the fins are not larger than the pre-finned smooth tube.Energy Transfer is solely focused on producing the largest variety and most complete solutions for finned tubing. Low finned tubes can be provided with a smooth or rifled tube inside surface.

Applications: Heat Exchanger Tube

Size:

Plain tube (mm)	Finned section dimensions (mm)				Ratio	De
D×t	Tp	dd	dr	di	η	mm
19×2	0.8	18.8	17	134	2.8	17.9
19×2	1	18.8	16.8	13.4	2.5	17.8
19×2	1.25	18.8	16.6	13	2.2	17.8
19×2	1.5	18.8	16.6	13	2	17.7
19×2	2	18.8	16.4	13	1.7	17.5
25×2.5	0.8	24.8	23	18.8	2.8	23.9
25×2.5	1	24.8	22.6	18.8	2.75	23.7
25×2.5	1.25	24.8	22.3	18	2.5	23.6
25×2.5	1.5	24.8	22.3	18	2.2	23.5
25×2.5	2	24.8	22	18	1.8	23.4
25×2.5	2.5	24.8	22	18	1.6	23.3
D------Outside diameter of plain end section Dof----Diameter of top fins Dr-----Root diameter of finned section Di-----Inside diameter of finned section T------Wall thickness of plain end section Tp-----Fin pitch De----Equivalent diameter of finned tube L------Plain tube end length

Production Steel Tube:

Product Tags:

copper fin tube heat exchanger

copper finned tube heat exchanger

heat exchanger fin tube

for Heat Exchanger C10200 Copper Low Fin Tube

304 316 AL Fin Tube Spiral Bending Machine Fin Heating Tube Aluminium Extruded Fin Tube Finned Tube Heat Exchanger

304 316 16Mo3 Carbon steel Alloy steel Embedded G Fin Tube Fin And Tube Heat Exchanger Dx Fintubes For Heat Exchangers

Low Fin Inner Grooved Copper Tube for Air Conditioning fintubes Fin Copper Tube Fin Heating Tube
