ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes

ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes

Quick detail :

Basic introduction

Size of sa 179 Heat Exchanger/Condenser Tubes:OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)

Production method of ASTM A179 Heat Exchanger Tubing:Cold drawing

Material :

ASTM A179 ASME SA179 SA192 ST52.3 St37..4 etc

Shape :Round Omega etc

Production Description

ASTM A179 / ASME SA179 SA 192 Chemical composition as below:

Steel Grade and Chemical Compositions:

ASTM A179 / ASME SA179​ SA192 Exchanger steel tubes Mechanical Properties
Tensil Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%

Feature:

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)

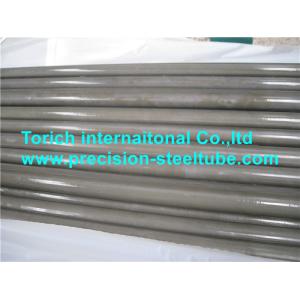

Product show:

Packaging:Wooden cases or according to client’s requirements

Shipping: Land transportation/Ocean transportation

Equipments:

Torich Interational Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes，DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;
Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.

Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube:A179,A192,A210,DIN17175,etc.
