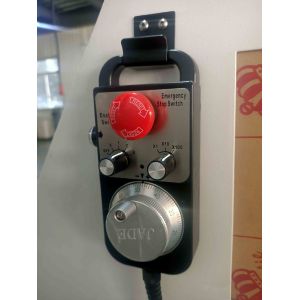

ZT-90 CNC PCD/PCBN Tools' Grinder
Technical Parameters
| Tip Radius | 0-70mm |
| Grinding Pressure | 0-450N (adjustable) |
| Spindle Speed | 0-4200RPM (adjustable) |
| Grinding Wheel Size | 150*40*40mm (D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min (adjustable) |
| Grinding Wheel Oscillation Distance | 0-40mm (adjustable) |
| Grinding Wheel Height Adjustment | 140mm |
| Grinding Wheel Traveling Range | 170mm |
| Grinding Wheel Inclination | -13°~+24° |
| Cross Table Swiveling Angle | 270° |
| Size of Cross Table | 210mm*160mm with 4T grooves |
| Readout of Linear Gratings | 0.001mm |
| Spindle Power | 2.2kW |
| Dimension | 1200*1168*1530mm (L*H*W) |
| Net Weight | 1450kgs |
ZT-90CNC is an economical grinding machine designed based on the
ZT-90 to meet the automation manufacturing and sophisticated
demands of toolmakers working with both hard and ultra-hard
materials, such as PCD, PCBN and hard alloy.
Design Features:
• The whole pneumatic system is of JAPAN SMC, to get rapid feed and
outfeed and flexible grinding.
• CCD optical system equipped with LCD, can realize online
observation
and monitoring.
• The swing axis provides two options, servo motor drive and
mechanical
drive. Servo motor drive can realize the swing amplitude, swing
frequency and swing center position of the grinding head non-stop
adjustment, improve production efficiency.
• Equipped with automatic lubrication pump, complete automatic
lubrication
Business Scope:
Vacuum Brazing Machine
CNC/Manual Grinder for PCD/PCBN Tools
Laser Cutting/Engraving machine, Lapping machine
Distribution World Famous PCD/PCBN Blanks, Produce High Quality PCD
Material
Machining Service for Laser Cutting, Polishing, Brazing, Chip
Breaker of Ultra-Hard Material
Accessories for Cutting Tools Making(Oil Agglutinant, Dressing
Stick, Vacuum Paste)
