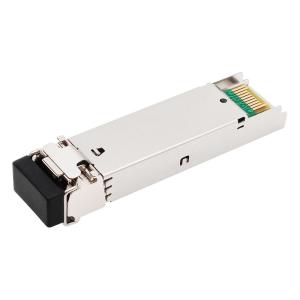

SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

    Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers

    Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers
    • Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers
    • Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers
    • Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers
    • Buy cheap SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA from wholesalers

    SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-LXX30-10DCRR
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

    3Gbps dual receivers digital video/audio dual fiber SFP module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM


    Functional Specification


    Product Name3G-SDI SFP Dual-ReceiverBandwidth (Gbps)50Mbit/s - 2.97Gbit/s
    Form FactorSFP 2-port ReceiversPin AssignmentNon-MSA Pinout
    Video Pathological PatternsSupport as defaultTemperatureOperating:0 to 70°C (32 to 158°F)
    Center Wavelength (RX)1310nmFiber Transmission10km
    Connector TypeDual LC ReceptacleFiber TypeSMF
    Transmitter TypeN/AReceiver TypePIN
    Power Supply Voltage3.3VSupply Current150mA (typical)
    ProtocolsSFP MSASaturation (Overload)> 0dBm
    Rx Sensitivity ( PRBS )SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm
    Rx Sensitivity(Pathological)SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm
    Digital DiagnosticWithWarranty3 years
    OEM/ODMSupportMTBF1,000,000Hours
    Application

    SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces

    HDTV/SDTV Service Interfaces


    Description


    Gigaopto's GTS-LXX30-10DCRR 3G-SDI SFP Dual Receivers Module is a dual channel optical single mode receiver module designed to receive optical serial digital signals as defined in SMPTE 297-2006. It supports from 50 Mbps to 3 Gbps and is specifically designed for received the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.

    Each receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and can receive signal from 50 Mbps to 3 Gbps, a max link reach is up to 10km with 3Gbps pathological signals.

    The receiver module is full compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.


    Features


    • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
    • SMPTE 297-2006 Compatible
    • Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 10km SMF
    • Dual Pin Photodetectors 1310nm wavelength with duplex LC receptacle
    • Non MSA Pinout
    • Metal enclosure for Lower EMI
    • Digital Diagnostic functions available through the I2C interface
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard : 0 to +70°C

    Application


    • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
    • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
    • Remote digital display or security surveillance systems
    • Professional video broadcast
    • Digital cinema system

    PIN Definition

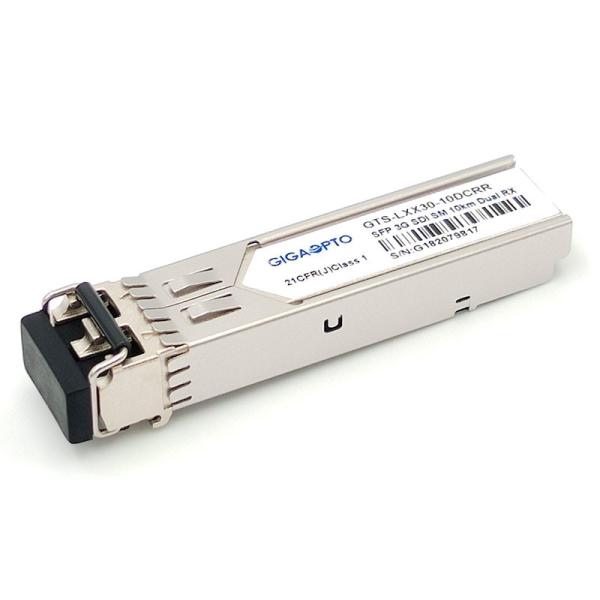

    Quality SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA for sale
