    3Gbps MSA Digital Video SFP BiDi 1310nm TX 1550nm RX 10km Transceiver Module For SD/HD/3G-SDI

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-B3530-10DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    3Gbps MSA Digital Video SFP BiDi 1310nm TX 1550nm RX 10km Transceiver Module For SD/HD/3G-SDI

    3G BiDi SFP 1310nm-TX/1550nm-RX 10km Video Pathological Patterns Transceiver Module for SD/HD/3G-SDI LC SMF DMI MSA Pinout


    Functional Specification


    Product Name3G Digital Video BiDi SFPPart/NumberGTS-B3530-10DC
    Data Rate2.97Gb/sMSA PinoutYes
    Module-TypeTransceiverOperating Temp.0°C to 70°C
    Wavelength1310nm-TX/1550nm-RXDistance10km
    ConnectorLCMediaSMF
    Transmitter TypeDFB BiDiReceiver TypePIN
    Power Supply Voltage3.3VTotal Current (Typical)200mA
    TX Optical Power-5~0dBmReceive Sensitivity< -18dB (PRBS 223-1, BER=1E-12 )
    Extinction Ratio>5.0dBPowerbudget13dB
    Pathological PatternsdefaultDiagnosticsYes
    OEM/ODMSupportedWarrnty3 years
    ApplicationSD/HD/3G SDI

    Description


    Gigaopto’s GTS-B3530-10DC is 1 fiber Bidirectional SFP optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.

    The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rate,a maximum distance of 10 km is achievable with 3Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector

    The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.


    Features


    • SD/HD/3G-SDI SFP Transceiver
    • SMPTE 297-2006 Compatible
    • Hot-Pluggable SFP
    • Bandwidth from 50 Mb/s to 2.97 Gb/s
    • Optical Link up to 10km for 3G-SDI
    • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
    • 1310nm-TX DFB Transmitter and 1550nm-RX PIN photo-detector
    • Hot-pluggable SFP footprint
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Digital Diagnostic functions available through the I2C interface
    • +3.3V single power supply
    • Low Power Consumption
    • Commercial operating case temperature range: 0℃ to 70℃
    • RoHS compliant and Lead-Free

    Application


    • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
    • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
    • HD Camera or Monitor System
    • High-density digital video routers & switches

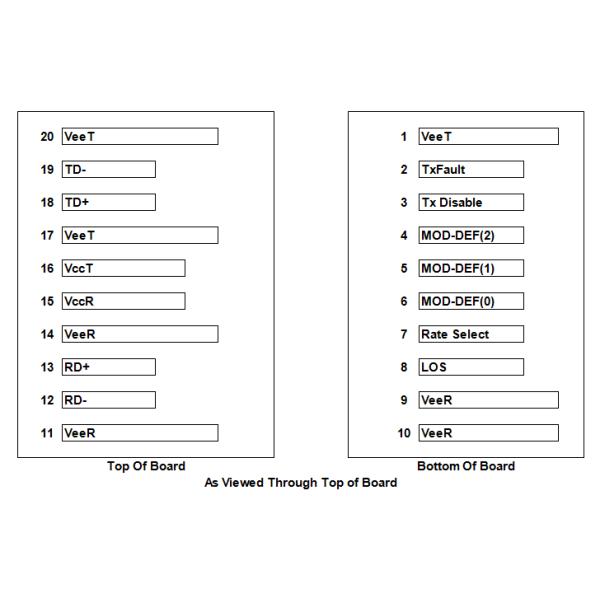

    PIN Definition
