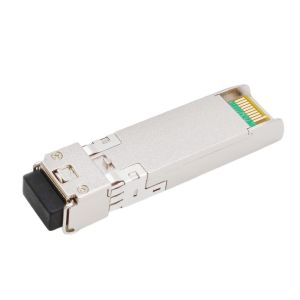

    2x 155Mbps 1310nm 1490nm Compact SFP BIDI Transceiver LC 40km DOM

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GCS-B4303-B4303-40C
    Certification : CE,FCC,RoHs, TUV,UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    2x 155Mbps 1310nm 1490nm Compact SFP BIDI Transceiver LC 40km DOM

    2x 155Mbps TX_1490nm/RX_1310nm CSFP BIDI Transceiver LC 40km DOM


    Description


    The GCS-B4303-B4303-40C compact small form-factor pluggable (CSFP) is a version of SFP with the same mechanical form factor allowing two independent bidirectional channels per port.

    It include two BOSA in one SFP port, each BOSA consists of a high quality 1490nm DFB laser transmitter and high sensitivity 1310nm PIN photodiode, providing 155Mbps throughput with 40km link transmission.

    It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface specified in the SFP MSA SFF-8472,real time monitors of temperature, supply voltage, laser bias current, laser average output power and receiving output power are provided.

    This two-fiber CSFP transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and CE/RoHS certified.


    Features


    Product Series2x 155Mbps CSFP BIDIPart No.GCS-B4303-B4303-40C
    PackageCSFPType2x BIDI per SFP port
    Data-Rate (Ch1/Ch2)155Mbps/155MbpsLane Count2x (Tx/Rx)
    Transmission40km @ G652 SMFConnectorLC Duplex
    Wavelength-Ch1TX_1490nm/RX_1310nmWavelength-Ch2TX_1490nm/RX_1310nm
    Power Voltage+3.3VPower Dissipation≤ 1.3W
    Transmitter TypeDFB LaserReceiver TypePIN/TIA Photodiode
    Transmitter Power-1 ~ -4dBmReceiver Sensitivity< -39dBm
    Extinction Ratio> 9dBOverload> -3dBm
    Optical Budget (dB)38dBDigital DiagnosticSupport
    EnvironmentOperating: 0 to 70°CWarranty3-year
    Storage: -40°C to 85°CUnit Weight25gram
    ProtocolsFast Ethernet, MSA Compliant

    Features


    • Two Fiber dual Bi-directional CSFP transceiver
    • Support 155Mbps bi-directional data links
    • 1490nm DFB laser and 1310nm PIN photodiode
    • A max transmission 40km on 9/125µm SMF
    • Duplex LC Connector
    • +3.3V single power supply
    • Compliant with CSFP MSA Option 2 and SFF-8472
    • Compatible with SONET OC-3 system
    • Operating case temperature:0 to +70°C (Commercial)/ -20 ~ +80°C (Extended)/ -40°C to +85°C (Industrial)
    • RoHS Compliant and lead free
    • Class 1 Laser International Safety Standard IEC 60825 Compliant

    Application


    • SONET OC-3 system
    • Fast Ethernet
    • Switch to Switch interface
    • Point to Point FTTH Application
    • Other optical transmission systems

    Electrical and Optical Characteristics


    ParameterSymbolMinTypicalMaxUnitNotes
    Transmitter
    Centre Wavelengthλc147014901510nm
    Spectral Width (-20dB)σ1nm
    Side Mode Suppression RatioSMSR30dB
    Average Output PowerPout-4-1dBm1
    Extinction RatioER9dB
    Optical Rise/Fall Time (20%~80%)tr/tf0.26ns
    Data Input Swing DifferentialVIN4001800mV2
    Input Differential ImpedanceZIN90100110Ω

    TX Disable

    Disable2.0VccV
    Enable00.8V

    TX Fault

    Fault2.0VccV
    Normal00.8V
    Receiver
    Centre Wavelengthλc12901330nm
    Receiver Sensitivity-35dBm3
    Receiver Overload-3dBm3
    LOS De-AssertLOSD-35dBm
    LOS AssertLOSA-45dBm
    LOS Hysteresis14dB
    Data Output Swing DifferentialVout4001800mV4

    LOS

    High2.0VccV
    Low0.8V

    Notes:

    1. The optical power is launched into SMF.

    2. PECL input, internally AC-coupled and terminated.

    3. Measured with a PRBS 223-1 test pattern @155Mbps, BER ≤1×10-12.

    4. Internally AC-coupled.
