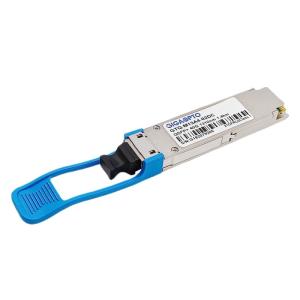

    40GBASE PSM IR4 1310nm 1.4km QSFP MTP MPO 12 SMF Optical Transceiver Module

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTQ-M13A4-02DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    40GBASE PSM IR4 1310nm 1.4km QSFP MTP MPO 12 SMF Optical Transceiver Module

    40GbE-PSM IR4 QSFP+ Optical Fiber Transceiver Module (DFB+PIN, SMF, 1310nm, 1.4km, MTP/MPO, DOM)


    Description


    The QSFP-40G-PSM IR4 Optical Transceiver Modules are operating over four parallel pairs of single-mode optical fiber providing four independent optical communication lanes, each transceiver uses 4 x FP transmitting lasers and 4 x PIN receivers, operating each lane with speeds of 11.2 Gbps, giving an aggregated maximum bandwidth of 44.8 Gbps.

    They are designed for use in 40Gbase Ethernet max link up to 1.4km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector.

    This transceiver is compliant with QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, which allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

    All of Gigaopto’s Optical Transceiver Modules are qualified through a rigorous process with advanced equipment before shipping to ensure you get the high quality and reliable optics.


    Specification


    Form FactorQSFP+Data Rate41.2Gbps (4×10.3Gbps)
    TX Wavelength1310nmMax Distance1.4km with FEC
    ConnectorMTP/MPO-12 MaleFiber TypeSMF
    LD TypeFPPD TypePIN
    TX Power per Lane-5.5~1.5dBmRx Sensitivity per Lane<-11.5dBm
    Powerbudget5dBExtinction Ratio>3.5dB
    Power Consumption≤2.5WRX Overload>3dBm
    Digital DisgnosticSupportedTemperature RangeCom.
    Host FECSupportedWarranty3 years
    Bit Error Ratio (BER)1E-12OEM/ODMSupported
    ProtocolsQSFP+ MSA, IEEE 802.3ae 10GBASE-LR/LW

    Features


    • Hot-pluggable QSFP+ form factor
    • Four Parallel Independent Optical Communication Lanes Max Data-rate 41.2Gbps (4x10.3Gbps/Lane)
    • 4x FP Laser Transmitter
    • 4x Pin photodetector
    • MPO-12 receptacle
    • Maximum link length of 1.4km and 4dB insertion loss on single mode fiber (SMF)
    • Built-in digital diagnostic functions,including Tx/Rx power monitoring
    • Power dissipation < 2.5W
    • Single 3.3V power supply
    • Commercial case temperature range 0°C to 70°C
    • Complaint to SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
    • Complaint to IEEE 802.3 40GBASE-PSM4
    • RoHS-6 compliant

    Application


    • 40G Ethernet
    • Data Center
    • OTU3

    For More of our 40GBASE Transceiver Series, please refer to the following form


    Part NumberDescriptionWave LengthReachFiber TypeTX Power (dBm)Rx Sens. (dBm)
    GTQ-M85A4-02DC40G SR4850nm150mMMF-7.6~2.4<-9.5
    GTQ-B08A4-02DC40G SR BiDi850/900nm150mMMF-4~5<-11
    GTQ-B08A4-04DC40G eSR4850nm300mMMF-7.5~0<-11
    GTQ-M13A4-02DC40G PSM IR41310nm1.4kmSMF-5.5~1.5<-11.5
    GTQ-L13A4-M2DC40GBASE-UNIV1310nm150m/2kmMMF/SMF-7~4.3/-10~2.3<-10/<-13.7
    GTQ-L13A4-02DC40G LR4 Lite1310nm CWDM2kmSMF-7~2.3<-11.5
    GTQ-M13A4-10DC40G LR41310nm CWDM10kmSMF-7~2.3<-11.5
    GTQ-M13A4-10DC40G PSM41310nm10kmSMF-6~-1<-14.4
    GTQ-M13A4-20DC40G eLR41310nm CWDM20kmSMF-4.5~2.3<-12.5
    GTQ-B13A4-40DC40G ER41310nm CWDM40kmSMF-2.7~4.5<-21.2
    GTQ-M13A4-02DC40G PSM4 Lite1310nm2kmSMF-6~-1<-14.4
    GTQ-B13A4-30DC40G ER4 Lite1310nm CWDM30kmSMF-3.7~4.5<-18
    NoteOEM/ODM supported
