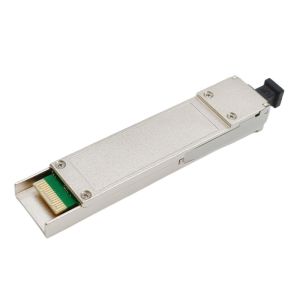

    Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers

    Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers
    • Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers
    • Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers
    • Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers
    • Buy cheap XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM from wholesalers

    XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTX-SGTA2-20DCC
    Certification : CE,FCC,RoHs, TUV,UL
    Price : negotiable
    Payment Terms : T/T, , L/C,, Western Union
    Supply Ability : 10,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM

    XG-PON OLT XFP Transceiver

    Compliant with ITU-T G.987.2,Class N2a

    Single fiber wdml Transceiver with SC Receptacle

    9.953Gb/s downlink and 2.488Gb/s uplink

    RoHS,CE,FCC,REACH


    Description


    Gigaopto’s GTX-SGTA2-20DCC XGPON OLT Transceiver Module is designed for the optical line terminal (OLT) of XGPON Applications with 9.953Gbps in downstream and 2.488Gbps in upstream. It is a high performance module for single fiber communications by using 1577 continuous-mode transmitter and 1270nm burst-mode receiver.

    The transmitter section employs an EML 1577nm laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section employs an integrated 1270nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

    It adopts XFP Package with SC/UPC receptacle connector. Power supply is single +3.3 Voltage.

    Digital diagnostics functions are available, as specified in SFF-8472,which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.


    Specification


    ProductXGPON OLT XFPPackagingXFP
    TypeXGPON OLTODN ClassN2a
    Distance20kmInterfaceSimplex -SC UPC
    Product CategoryPON TransceiverDiagnosticsSupported
    Compatible BrandGenericEnvironmentOperating: 0°C to 70°C
    Warranty36-monthstorage:-40~85°C
    Data Rate Downstream9.953GbpsData Rate Upstream2.488Gbps
    Wavelength (TX)1577nmWavelength (RX)1270nm
    Power Consumption<1.8 WTotal Supply Current<500mA
    TX Optical ComponentDFB EML laserRX Optical ComponentAPD
    TX Power (dBm)4~8dBmRx Sensitivity< -29.5dBm
    Extinction Ratio>8.2dBOverload>-9.0dBm
    ProtocolsINF-8077i ,ITU-T G.987.2

    Features


    • XFP Package
    • Single Power Supply +3.3 Voltage
    • Single Fiber Bi-Directional SC/UPC receptacle
    • 1577nm continuous-mode 9.983Gb/s DFB EML transmitter
    • 1270nm burst-mode 2.488Gb/s APD receiver
    • SFP electrical interface
    • 2-wire interface for integrated Digital Diagnostic monitoring
    • Operating temperature range: 0 °C ~+70 °C
    • ROHS Compliant and lead free

    Application


    • N2a XGPON OLT

    Standards


    • Complies with INF-8077i
    • Complies with ITU-T G.987.2
    • Complies with FCC 47 CFR Part 15, Class B
    • Complies with FDA 21 CFR 1040.10 and 1040.11

    Ordering Information of our XGPON OLT Transceivers


    P/NDescriptionForm FactorData Speed (Gb/s)Wavelength (nm)ClassTx/Rx TypeTx PowerRx SensitivityInterfaceTemperature
    GTS-SGTA2-20DCBXG-PON OLT TransceiverSFP+TX 9.953G/RX 2.488GTX1577nm/RX1270nmN1EML/APD2~6dBm-27.5dBmSC/UPC-5°C to 70°C
    GTS-SGTA2-20DCCXG-PON OLT TransceiverSFP+TX 9.953G/RX 2.488GTX1577nm/RX1270nmN2aEML/APD4~8dBm-29.5dBmSC/UPC-5°C to 70°C
    GTX-SGTA2-20DCBXG-PON OLT TransceiverXFPTX 9.953G/RX 2.488GTX1577nm/RX1270nmN1EML/APD2~6dBm-27.5dBmSC/UPC-5°C to 70°C
    GTX-SGTA2-20DCCXG-PON OLT TransceiverXFPTX 9.953G/RX 2.488GTX1577nm/RX1270nmN2aEML/APD4~8dBm-29.5dBmSC/UPC-5°C to 70°C
