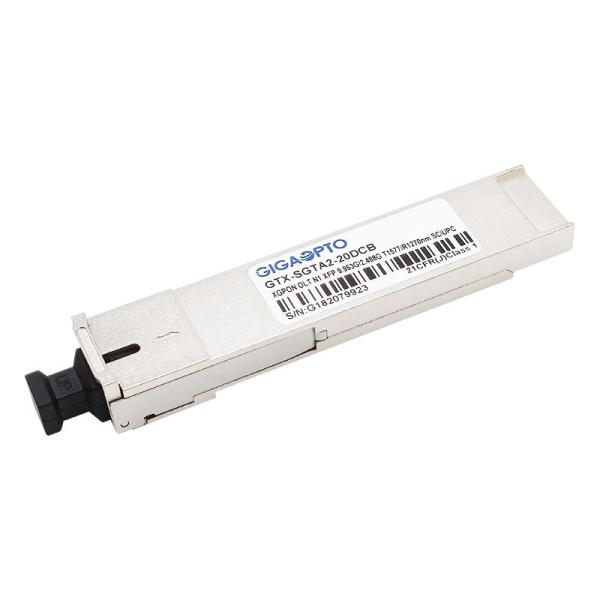

    XGPON OLT N1 XFP GPON SFP Transceiver Module TX1577nm 9.953G/RX1270nm 2.488G SMF 20km SC DDM

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTX-SGTA2-20DCB
    Certification : CE,FCC,RoHs, TUV,UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    XGPON OLT N1 XFP GPON SFP Transceiver Module TX1577nm 9.953G/RX1270nm 2.488G SMF 20km SC DDM

    XG-PON OLT XFP Transceiver

    Compliant with ITU-T G.987.2,Class N1

    Single fiber bi-directional Transceiver with SC/UPC Receptacle

    9.953Gb/s downstream and 2.488Gb/s upstream

    RoHS,CE,FCC,REACH


    Description


    This GTX-SGTA2-20DCB XGPON OLT N1 XFP SC UPC Fiber Transceiver Module is designed for the optical line terminal (OLT) of XGPON with 9.953Gbps in downstream and 2.488Gbps in upstream by using 1577 continuous-mode transmitter and 1270nm burst-mode receiver.

    The transmitter section uses an EML 1577nm laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section uses an integrated 1270 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

    It adopts XFP Package with SC/UPC receptacle connector. Power supply is single +3.3 Voltage.

    Digital diagnostics functions are available, as specified in SFF-8472,which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.


    Specification


    Product NameXG-PON OLT XFPForm FactorXFP
    TypeXG-PON OLTODN ClassN1
    Distance20kmConnector TypeSimplex -SC/UPC
    Product CategoryPON TransceiverDOM/DDMSupported
    CompatibilityGenericEnvironmentOperating: 0°C to 70°C
    Warranty Time3-Yearstorage:-40~85°C
    Bit Rate TX9.953GbpsBit Rate RX2.488Gbps
    Wavelength (TX)1577nmWavelength (RX)1270nm
    Power Dissipation<1.8 WTotal Supply Current<500mA
    TransmitterDFB EMLReceiverAPD
    TX Output Power (dBm)2~6dBmRx Sensitivity< -27.5dBm
    Extinction Ratio>8.2dBOverload>-7.0dBm
    ProtocolsINF-8077i ,ITU-T G.987.2

    Features


    • XFP Package
    • Single Power Supply +3.3 Voltage
    • Single Fiber Bi-Directional SC/UPC receptacle
    • 1577nm continuous-mode 9.983Gb/s DFB EML transmitter
    • 1270nm burst-mode 2.448Gb/s APD receiver
    • SFP electrical interface
    • 2-wire interface for integrated Digital Diagnostic monitoring
    • Operating temperature range: 0 °C ~+70 °C
    • ROHS Compliant and lead free

    Application


    • XG-PON N1 Class

    Standards


    • Complies with INF-8077i
    • Complies with ITU-T G.987.2
    • Complies with FCC 47 CFR Part 15, Class B
    • Complies with FDA 21 CFR 1040.10 and 1040.11

    Ordering Information of our XGPON OLT Transceivers:


    P/NDescriptionForm FactorData Rate (Gb/s)Wavelength (nm)ClassTx/Rx TypeTx PowerRx SensitivityInterfaceTemperature
    GTS-SGTA2-20DCBXG-PON OLT TransceiverSFP+TX 9.953G/RX 2.488GTX1577nm/RX1270nmN1EML/APD2~6dBm-27.5dBmSC/UPC-5°C to 70°C
    GTS-SGTA2-20DCCXG-PON OLT TransceiverSFP+TX 9.953G/RX 2.488GTX1577nm/RX1270nmN2aEML/APD4~8dBm-29.5dBmSC/UPC-5°C to 70°C
    GTX-SGTA2-20DCBXG-PON OLT TransceiverXFPTX 9.953G/RX 2.488GTX1577nm/RX1270nmN1EML/APD2~6dBm-27.5dBmSC/UPC-5°C to 70°C
    GTX-SGTA2-20DCCXG-PON OLT TransceiverXFPTX 9.953G/RX 2.488GTX1577nm/RX1270nmN2aEML/APD4~8dBm-29.5dBmSC/UPC-5°C to 70°C
