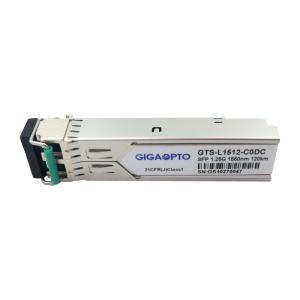

SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module

    Buy cheap SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module from wholesalers

    Buy cheap SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module from wholesalers
    • Buy cheap SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module from wholesalers
    • Buy cheap SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module from wholesalers
    • Buy cheap SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module from wholesalers

    SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module

    Ask Lasest Price
    Brand Name : GIGAOPTO
    Model Number : GTS-L1512-C0DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 50,000pcs / month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module

    Cisco Compatible 1550nm 120km 1000BASE-EZX SMF DOM Duplex LC SFP Transceiver Module


    Description


    The GIGAOPTO's GTS-L1512-C0DC transceiver is a high performance, cost effective module supporting data rate of 1.25Gbps and 120km transmission distance with LC duplex single-mode fiber (SMF). The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. This module is built to operate at a nominal wavelength of 1550nm for serial optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. All modules meet international class I laser safety standards.


    Specification


    Compatible BrandCISCOCompatible PNGLC-EZX-SM-120
    Form FactorSFPData Rate (Gbps)1.25Gbps
    Optical ConnectorDuplex LCMax Supported Link Length120km
    DOMYesFiber TypeSMF
    Warranty3 YearsTemperature Range

    0 to 70°C (32 to 158°F)

    -40 to 85°C (-40 to 185°F)

    Wavelength1550nmPower Supply Voltage3.3V (Typical)
    Max Power Consumption1WIcc<300mA
    Transmitter TypeDFBReceiver TypeAPD
    TX Power0~5dBmRX Sensitivity< -32dBm
    ER>9dBOverload< -10dBm
    ProtocolsSFF-8472 MSA Compliant, IEEE 802.3ah-2004

    Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

    according to the table.

    Distance≤20km≤40km≤60km
    Attenuator15dB10dB5dB

    Features


    • Up to 1.25Gbps bit rate
    • Duplex LC connector interface
    • 1550nm DFB laser and APD photodetector
    • 120km with 9/125 µm SMF
    • Hot-pluggable SFP footprint
    • Temperature range:

    Com.: 0°C~70°C

    Ind.: -40°C~85°C

    • RoHS Compliant
    • Compliant with SFP MSA and SFF-8472

    Application


    • 1.25Gbps Optical systems
    • Gigabit Ethernet
    • 1.063Gbps Fiber Channel

    Compatibility


    All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
    For this (1000BASE-EZX SFP 1550nm 120km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.


    Compatible BrandCompatible P/NCompatible BrandCompatible P/N
    GIGAOPTOGTS-L1512-C0DCAlcatel-LucentSFP-GIG-EZX
    CISCOGLC-EZX-SM-120AristaSFP-1G-EZX-120
    JuniperSFP-1GE-EZX-120BrocadeE1MG-EZX-120

    Ordering Information


    P/NDescriptionData RateWavelengthReachFibre TypeInterface
    GTS-L0812-02DC1000BASE-SX SFP1.25G850nm

    550m@OM2

    275m@OM1

    220m@FDDI

    MMFDuplex LC
    GTS-L1312-M2DC1000BASE-SX SFP1.25G1310nm2km@OM4MMFDuplex LC
    GTS-L1312-10DC1000BASE-LX SFP1.25G1310nm10kmSMFDuplex LC
    GTS-L1312-20DC100BASE-LH SFP1.25G1310nm20kmSMFDuplex LC
    GTS-L1512-40DC1000BASE-EX SFP1.25G1550nm40kmSMFDuplex LC
    GTS-L1312-40DC1000BASE-EX SFP1.25G1310nm40kmSMFDuplex LC
    GTS-L1512-80DC1000BASE-ZX SFP1.25G1550nm80kmSMFDuplex LC
    GTS-L1512-A0DC1000BASE-EZX SFP1.25G1550nm100kmSMFDuplex LC
    GTS-L1512-C0DC1000BASE-EZX SFP1.25G1550nm120kmSMFDuplex LC
    GTS-L1512-F0DC1000BASE-EZX SFP1.25G1550nm160kmSMFDuplex LC
