Description of FTTH Pre-connectorized 8 ports MST Nap Box Huawei
Mini SC IP68
The Multi Service Terminal Box Pre-connectorized with OptiTap or
huawei mini SC hardened adapters, They are 2 ports, 4 ports, 6
ports, 8 ports or 12 ports for options. It suitable for fast FTTH
deployment, the terminal box are fully IP68 rated to fully
withstand the rigors of outdoor deployment in all environments.
Features
Plug-and-play adapter ports ensure rapid cable installment in the
outside plant access section of the network.
Hardened connectors are factory-terminated and environmentally
sealed for use in optical drop cable deployments.
Flexible choice of ports: 2, 4, 6, 8 terminals are available.
Each box can be fully assembled to reduce the need for opening and
opening the field in the field.
Multi-port Service Terminals incorporate hardened connector
technology that is designed to withstand the rugged outside plant
environment.
Factory terminated IP68 rated, high quality, high performance
connectors.
Specification
| Port | 2, 4, 6, 8, 12 Ports |
| Product Type | FTTH Pre-connectorized MST Nap Box |
| IP Rate | IP68 |
| Components Compliant | RoHs |
| Operating Temperature | -40 to +85℃ |
| Adapter | Huawei mini SC, OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
| Entrance | Cable gland or Mini SC/OptiTap adapter |
| Feed Cable | 1, 2, 4, 6, 8 cores for options |
| Feed Cable Length | 100M 150M 200M or Others |
| Stub Type | Stub Tail |
| Mounting Method | Hand-hole, Pedestal, Pole, Strand, Aerial |
Cable Specification
| Cable Type | Flat drop cable |
| Cable Size | 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm |
| Cable Quantity | 1 |
| Cable Stub Length | 50meter to customized |
| Attenuation, maximum | 0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
| Directivity, minimum | 60 dB |
| Wavelength Range | 1260–1635 nm |
Insertion Loss, Terminal Connector, max | 0.4dB |
| Return Loss, Connector, minimum | 65dB |
Dimension of MST Nap Box
| Item | Dimension |
| 2Port | 210x111x78mm |
| 4Port | 210x111x78mm |
| 6Port | 210x111x78mm or 282x111x77.5mm |
| 8Port | 282x111x77.5mm |

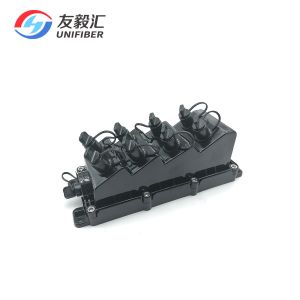

Picture of FTTH Pre-connectorized 4/6/8 ports MST Nap Box
