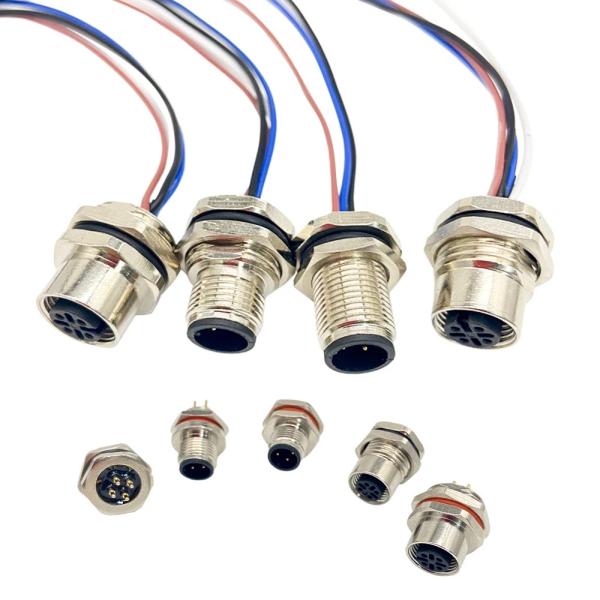

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P

Name: M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
Brand: Jetacon
Price: 1 USD

Ask Lasest Price
Brand Name :	Jetacon
Model Number :	M12 Wired Connectors
Certification :	CE
Price :	US $3.99 / Piece
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	1000 /Pieces per Day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P

Specification:

Number of connectors: 4 / 5 / 8 Pin

Wire gauge in m㎡: Maximum 0.75m㎡

Protection level: IP67

Temination: Screw

Cable range: Φ4--Φ7mm / Φ7--Φ9mm

Temperature rating: -25°C~85°C

Material group: 30 / 60 / 250v

Pin contact: CuZn

Contact Plating: Au

Male insert: PA

Contact resistance: Less than 3.0mΩ

Mechanical operat: More than 100 times

Overvoltage categorie: 2

Housing cante connect: PA

Rated current(40°): 2A / 4A

Rated imoulse voltage: 800/ 1500/ 2500V

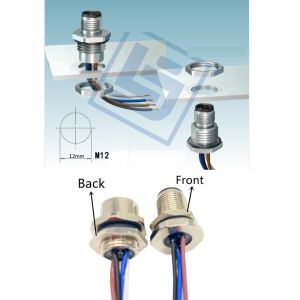

Screw Installation Options: Front Plate installation or Rear plate installation
