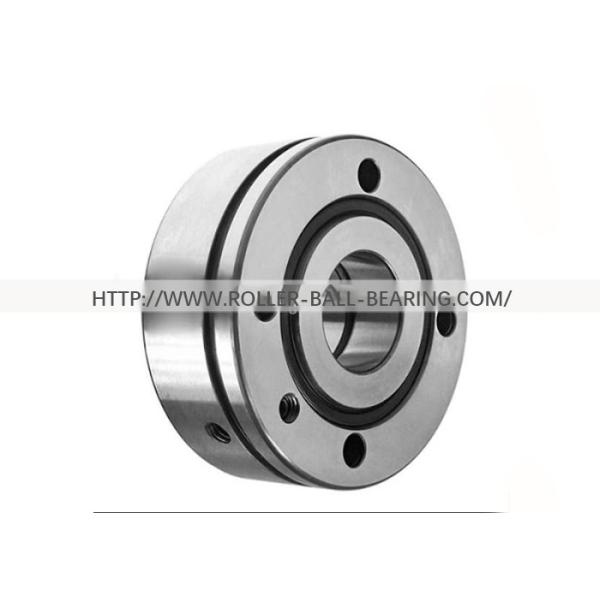

    ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS

    Ask Lasest Price
    Brand Name : QIEAL ZH
    Model Number : ZKLF3080-2RS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300pieces per day
    Delivery Time : 3-7work days
    • Product Details
    • Company Profile

    ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS


    Bearing ZKLF3080-2RS Axial Angular Contact Ball Bearings ZKLF3080-2RS


    Product Description

    Axial angular contact ball bearings for screw drives

    ZKLF bearing is a bearing unit composed of an integral outer ring, a group of sectile inner rings, steel balls, cage assemblies and sealing. ZKLF bearing features compact structure, small size and high rotating accuracy, enduring force in two directions and bearing certain axial load while holding very high radial load, and multiple structure styles, broad adaptability and easy installation. ZKLF bearing is widely used in combination lathe or the spiral-rod drive in machining center.

    Precision bearings for screw drive bearing arrangements
    Axial angular contact ball bearings are precision bearings for screw drive bearing arrangements. Depending on the series, they can
    support radial forces as well as axial forces in one or both directions. Contact seals protect the rolling element system against contamination and moisture. For higher speeds, non-contact minimal gap seals can be used.


    With and without fixing holes
    The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is then no need for the loexcavatoring bore that would otherwise be required or for the bearing cover with the associated matching work.

    Available with less stringent tolerances
    For some areas of appliexcavatorion, a bearing arrangement of lower precision is often sufficient. For this purpose, bearings with lessstringent tolerances are available.



    namebearing ZKLF3080-2RS Axial angular contact ball bearings ZKLF3080-2RS
    ID30MM
    OD80MM
    B26MM
    mailqireal220929@163.com
    Tel+86-18620602705


    mmKg-0.25
    12ZKLF 1255.2RS0.371255253×120°M63
    ZKLF 1255.2Z0.371255253×120°M63
    15ZKLF 1560.2RS0.431560253×120°M63
    ZKLF 1560.2Z0.431560253×120°M63
    17ZKLF 1762.2RS0.451762253×120°M63
    ZKLF 1762.2Z0.451762253×120°M63
    20ZKLF 2068.2RS0.612068284×90°M64
    ZKLF 2068.2Z0.612068284×90°M64
    25ZKLF 2575.2RS0.722575284×90°M64
    ZKLF 2575.2Z0.722575284×90°M64
    30ZKLF 3080.2RS0.783080286×60°M66
    ZKLF 3080.2Z0.783080286×60°M66
    35ZKLF 3590.2RS1.133590344×90°M84
    ZKLF 3590.2Z1.133590344×90°M84
    40ZKLF 40100.2RS1.4640100344×90°M84
    ZKLF 40100.2Z1.4640100344×90°M84
    50ZKLF 50115.2RS1.8650115346×60°M86
    ZKLF 50115.2Z1.8650115346×60°M86
    60ZKLF 60145.2Z4.3060145456×60°M88
    ZKLF 70155.2Z4.9070155458×45°M88
    80ZKLF 80165.2Z5.3080165458×45°M88
    90ZKLF 90190.2Z8.7090190558×45°M108
    100ZKLF 100200.2Z9.30100200558×45°M108

    Packing&Shipping
    1. single box +carton +pallet
    2. delivery time : after payment 3 days

    Our Services & Strength

    delivery1. high-quality

    2. best price

    3. fast delivery time
