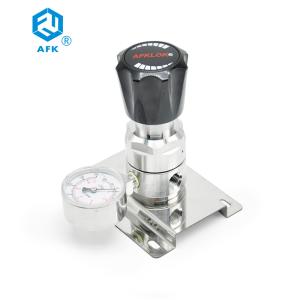

Product Description of R11 Gas Pressure Regulator
R11 Series stainless steel pressure regulator is Single stage
diaphragm, vacuum structure Stainless diaphragmoutput. It has
piston pressure reducing structure, constant outlet pressure,mainly
used for high input pressure,suitable for purified gas, standard
gas, corrosive gas etc.
Our pressure reducers can be used for a variety of special gases.
When you purchase, as long as you tell the customer service in
advance which gases to use, we will provide products according to
your needs and attach gas labels
The products that have not been polished are still very fine in
color and workmanship. It is very good to have a fuller color and
texture. These products are taken when they are about to be shipped
outside. The real products will make you more satisfied
Specification of of R11 Gas Pressure Regulator
| Material List |
| 1 | Body | SS316L, brass, nickel plated brass ( Weigh :0.9kg) |
| 2 | Cover | SS316L, brass, nickel plated brass |
| 3 | Diaphragm | SS316L |
| 4 | Strainer | SS316L(10um) |
| 5 | Valve Seat | PCTFE,PTFE,Vespel |
| 6 | Spring | SS316L |
| 7 | Plunger Valve Core | SS316L |
| Technical Data |
| 1 | Maximun Input Pressure | 500,3000 psig |
| 2 | Output Pressure Range | 0~25, 0~50, 0~100, 0~250, 0~500 psig |
| 3 | Safety Testing Pressure | 1.5 times of maximum input pressure |
| 4 | Working Temperature | -40°F~ +165°F (-40°C~ +74°C ) |
| 5 | Leakage Rate | 2×10-8 atm cc/sec He |
| 6 | CV Value | 0.08 |
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet pressure | Outlet pressure | Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve |
| | D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve |
| | G | | K:0-50 psi | | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve |
| | J | | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | |
| | M | | | | 28: CGA660 | 15:6mm OD | |
| | | | | | 30: CGA590 | 16:8mm OD | |
| | | | | | 52: G5/8 "-RH(F) | | |
| | | | | | 63: W21.8-14H(F) | | |
| | | | | | 64: W21.8-14LH(F) | | |
Packing & Delivery
The boxes of the reducer connector solenoid valve and valve
products are customized, and the boxes are usually filled with
tape. After wrapping a layer of tape on the outside, the boxes will
be fixed with a layer of tensile film to prevent damage.
The logistics are normally federal, UPS, etc. If you need to use
the designated logistics, you can communicate with the customer
service
