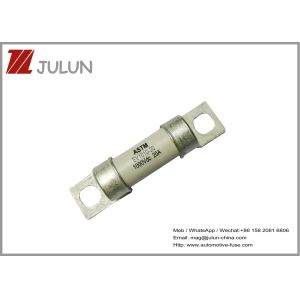

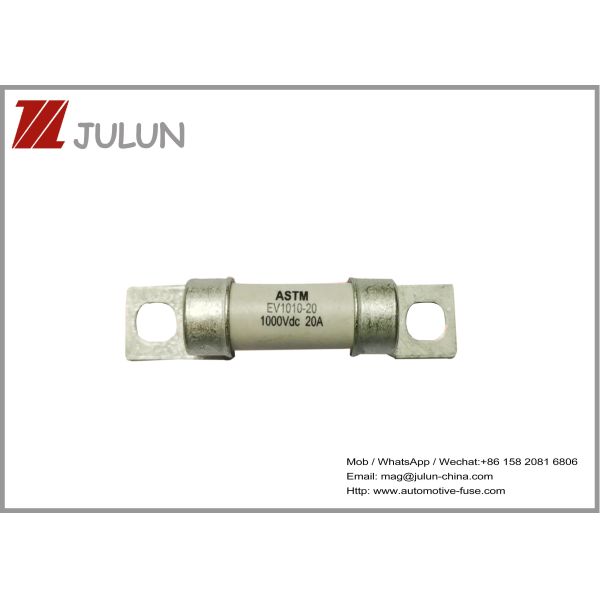

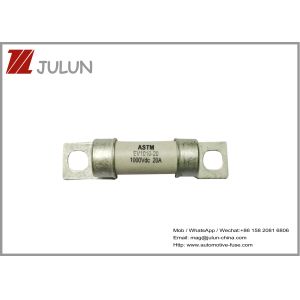

AUTOMOTIVE FUSE 1000Vdc For EV Or HEV Application Compact Bolt Down
And Thru-Hole Terminals
1.Description
Ø General purpose fuse for EV/HEV
Ø Compact bolt down and thru-hole terminals
Ø 1000Vdc ideal for EV or HEV application
Ø Excellent DC performance
Ø Design refer to JASO D622:2006
| Electrical Characteristics |
| % of Ampere Rating (A) | Operating Time (Unit: s) |
| Min | Max |
| 200% | 1 | 300 |
| 300% | 0.2 | 30 |
| 500% | 0.1 | 10
|
1.Specifications :(‘YY’ means Assembly code )
Ordering P/N 订购料号 |
Rated Current (A) 额定电流 |
Rated Voltage/ Interrupting rating 额定电压/分断能力 | Typical cold resistance 冷电阻典型值 (mOhms) | Typical voltage drop 压降典型值 (mV) | Typical pre- arcing I2t 弧前 I2t 典型值 (A2sec) |
| At 0.5In | At 1.0In |
| EV1010-10YY | 10 |
1000Vdc/50000A | 12.5 | 60 | 130 | 120 |
| EV1010-15YY | 15 | 7.2 | 60 | 140 | 405 |
| EV1010-20YY | 20 | 5.2 | 80 | 154 | 1450 |
| EV1010-25YY | 25 | 4.0 | 63 | 145 | 560 |
| EV1010-30YY | 30 | 3.1 | 56 | 150 | 650 |
*Temperature Rise :<=50K with 70% of rated current
** Typical pre-arcing I2t measured at 10In

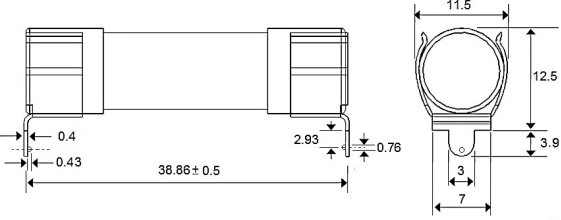

3.Dimension (mm)
(1) Assembly Code ‘AP’/Ordering code ”EV1010-xxAP” 螺栓安装方式’AP’/订货编码”EV1010-xxAP”
(2) Assembly Code ‘BPL’/Ordering code ”EV1010-xxBPL” 螺栓安装方式’BPL’/订货编码”EV1010-xxBPL”
(3) Assembly Code ‘EP’/Ordering code ”EV1010-xxEP” 螺栓安装方式’EP’/订货编码”EV1010-xxEP”
(4) Assembly Code ‘CP’/Ordering code ”EV1010-xxCP”; PCB 引脚通孔焊接方式‘CP’/订货编码”EV1010-xxCP”
(5) Assembly Code ‘FP’/Ordering code ”EV1010-xxFP”; PCB 引脚通孔焊接方式‘FP’/订货编码”EV1010-xxFP”
