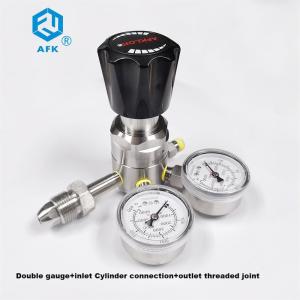

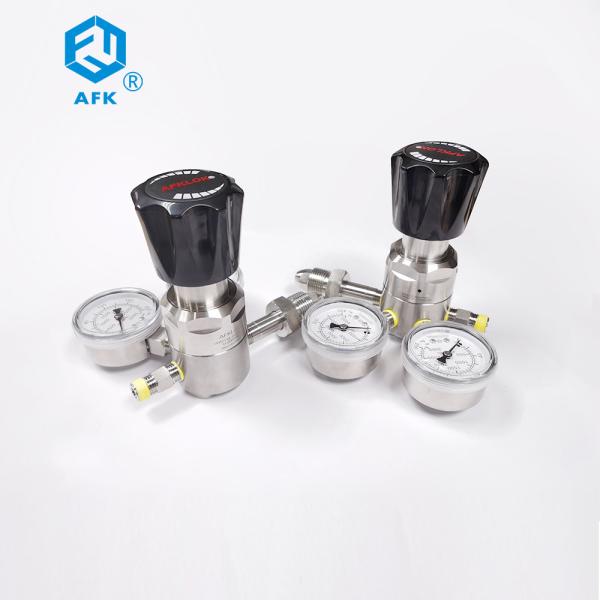

AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in

    Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers

    Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers
    • Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers
    • Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers
    • Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers
    • Buy cheap AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in from wholesalers

    AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R11
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000pcs
    • Product Details
    • Company Profile

    AFK Nitrogen SS Single Stage Pressure Regulator High Pressure 350 Bar 6000psi 1/4in

    design features of high pressure regulator 350 bar
    1.single-stage reduce structure
    2.Use hard-seal between body and diapragm
    3.Body thread:1/4"NPT(F)
    4.Easy to sweep inside body
    5.Filter mesh inside
    6.Panel mountable or wall mounted

    Material of high pressure regulator 350 bar

    body:316L,Brass

    Roof:316L,Brass

    Diaphragm:316L

    Filter mesh:316L(10μm)

    Valve seat:PCTFE,PTFE,Vespel

    Spring Loaded:316L

    Valve disc regulation pole:316L

    ORDERING INFORMATION of high pressure regulator 350 bar

    R11LBDFG0000P
    Item

    Body

    Materia

    Body Hole

    Inlet

    pressure

    Outlet

    pressure

    Pressure gaugeInlet sizeOutlet sizemark
    R11L:316AD:3000 psiF:0-500 psiG:MPa gauge00:1/4 " NPT (F)00: 1/4 " NPT(F)P:Panel mounting
    B:BrassBE:2200 psiG:0-250 psi01:1/4 " NPT (M)01: 1/4 " NPT(M)N:Needle valve
    DF:500 psil:0-100 psiP:Psig/bar gauge23: CGA33010:1/8 " ODN:Needle valve
    GK:0-50 psi24: CGA35011:1/4 " ODD:Diaphragm valve
    JL:0-25 psiW:No gauge28: CGA66012:3/8 " OD
    M28: CGA66015:6mm OD
    30: CGA59016:8mm OD
    52: G5/8 "-RH(F)
    63: W21.8-14H(F)
    64: W21.8-14LH(F)


    FAQ


    Q. Are you manufacturer?

    A. Yes, we are manufacturer.


    Q.What is lead time?

    A.3-5days. 7-10 days for 100pcs


    Q. How do I order?

    A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours


    Q. Do you have any certificates?

    A. We have CE certificate.


    Q. What materials do you have?

    A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.


    Q. What is maximum inlet pressure?

    A.3000psi (about 206bar)


    Q. How do I confirm inlet connnection for cylidner?

    A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also

    available e.g CGA540, CGA870 etc.


    Q. How many types for connecting cylinder?

    A. Down way and side way. (you can choose it)


    Q. What is product warranty?

    A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
