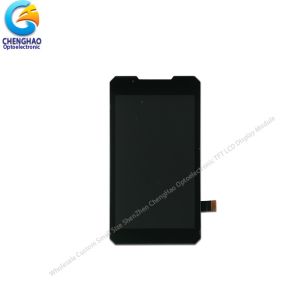

Full HD Color LCD Screen 5.5 Inch 1080*1920 TFT LCD Capacitive
Touchscreen
1. Specification
| MODEL NO. | CH550FH01A-CT |
| Module type | 5.5"TFT + CTP |
| Display Mode | IPS / Transmissive / Normally Black |
| CTP type | G+F+F |
| Number of Dots | 1080*3(RGB)*1920 |
| Viewing Direction | 80/80/80/80 |
| Module size | 77.1(W)*151.77(H)*3.39(T)mm |
| TFT Active area | 68.04(W)*120.96(H)mm |
| TFT Dot pitch | 0.063(W)*0.063(H)mm |
| Interface | TFT:4-lane MIPI CTP:I2C |
| Backlight Type | White LED |
| Luminace | 650 nits |
2. Description
Chenghao Optoelectronic CH550FH01A-CT is a Full HD color LCD screen
(vertical screen) used in access control identification equipment.
The display resolution reaches 1080*1920, the diagonal measurement
of the display area is 5.5 inches, and it can display 16M colors
Full HD video animation. This full HD color LCD screen uses LTPS
display technology, and the viewing angle of the screen reaches
80/80/80/80. Users can clearly read the content on the screen at
any viewing angle. At the same time, this Full HD color LCD screen
is equipped with a touch panel, which supports multi-touch, and
users can realize human-computer interaction through the touch
panel.
CH550FH01A-CT is a Full HD color LCD screen with excellent
performance. It adopts the combination of lcd panel + TP. The lcd
panel belongs to TFT LCD, and uses MIPI interface to communicate
with external devices. The TP is capacitive (CTP) and uses the I2C
interface.
This Full HD color LCD screen has completed the high and low
temperature experimental test, and can work continuously for more
than 30k Hr in the environment of -20~+70℃.
3. Drawing
4. Quick Detail
LCD type :5.5”TFT + CTP
Dot arrangement :1080(RGB)×1920 dots
Color filter array :RGB vertical stripe
Display mode :LTPS / Transmissive / Normally Black
Viewing Direction :80/80/80/80
Driver IC :HX8399C
CTP type :G+F+F
Surface Treatment :6H
CTP Driver IC: GT911
LCM outline :77.1(W)×151.77(H)×3.39(T)
TFT outline: 70.78(W)×129.17(H)×1.7(T) mm
View area :68.44(W)×121.36(H) mm
Active area :68.04(W)×120.96(H) mm
Dot pitch :63(W)×63(H) um
Interface :MIPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light :14 White LED
Weight :TBD g
5. Application
6. FAQ
Q1.What is the minimum order quantity for your products?
A1.Minimum order quantity starts from ONE piece .
Q2. How can we get samples from you ?
A2.Samples are available. Normally we take 2 days to arrange
samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.
Q3.When will you send the parts to me?
A3.We will send the parts to you within 3-5 workdays after
receiving your payment.
Any other more questions, please feel free to contact us. We are
always at your service !
