| Brand Name : | ODM OR OEM |
| Model Number : | IFM32140-6-15 |
| Certification : | MSDS REACH ROHS UN38.3 |
| Price : | USD19 |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 10000PCS per month |
| Delivery Time : | 30 days |

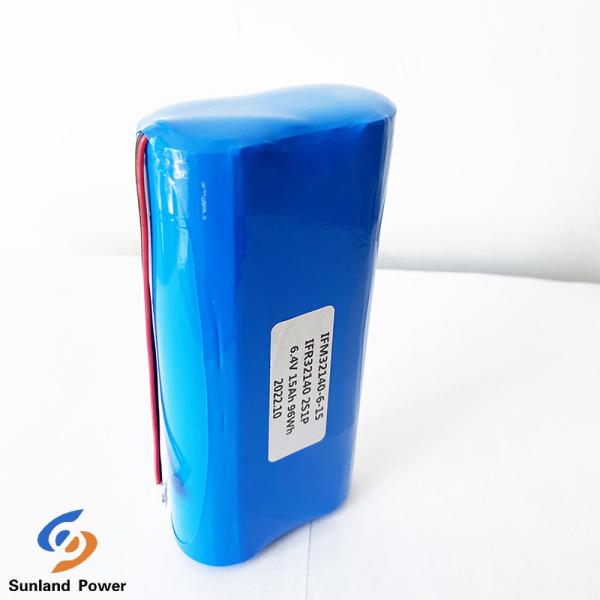

IFR32140 2S1P 6.4V 15AH Battery Pack 3.2V LiFePO4 Battery For Electric Fencing With Solar Powered
Description:
1. MODEL :IFM32140-6-15
2. Part No: P-2022-0051
3. IFR32700 2S2P 6.4V12AH 76.8Wh
4. Nominal Capacity:15AH
5. Nominal Voltage:12.8V
6. Weight:610g
7. Size:35mm*67.5mm*147mm
8. Max continuous charge current:2A
9. Max continuous discharge current:2A
No. | Items | Specifications | Remark |
1 | Capacity for assembled cell discharging by 0.2C | ≥14.5Ah | Standard discharging method |
2 | Battery Voltage | ≥6.56V | Base on MOQ 10K Within 10 days from Factory |
Battery SOC | Appr 30% | ||
3 | Standard charge condition | Charge with 2A constant current and 7.3V constant voltage, charge to 7.3V,continue charging till current decline to ≤0.01C | Charge voltage: 7.3V±0.03V Charge current:2A |
| 4 | Max continuous charge current | 2A | |
5 | Standard discharging method | 2A constant current discharge to 5V, | |
| 6 | Max continuous discharge current | 2A | |
7 | Internal Impedance | Assemblage Impedance | Measure the Red and black wire of the connector after assembling. |
| 8 | Charge upper limit temperature | 0-45℃ | Charging at low temperature, capacity and cycle life will reduce. |
| 9 | Discharge upper limit temperature | -20-60℃ | |
| 10 | Connector | JST PHR-4P | The original JST connectors (PHR-4P) |
| 11 | Wire | UL1007 24AWG | Outside diameter Max :1.5mm |
| 12 | Date code | Cell date code and battery date code not beyond 3month |
IFR32140 2S1P 6.4V 15AH Battery Pack 3.2V LiFePO4 Battery For Electric Fencing With Solar Powered




|
