    High Frequency Piezo Electric Disk Ceramic Atomizer 16-1.7BU 17Mkz With Long Life Time

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-PC
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 350000 units per month
    Delivery Time : 7 working days after received your payment
    • Product Details
    • Company Profile

    High Frequency Piezo Electric Disk Ceramic Atomizer 16-1.7BU 17Mkz With Long Life Time

    High Frequency Piezo Electric Disk Ceramic Atomizer 16-1.7BU 17Mkz With Long Life Time



    Description:

    Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment,Atomization. etc.

    Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.

    ProductsSizesResonant Frequency (MHz)ResonantImpedance(R)Capacitance (pF)Dielectric dissipation factor tgδ(Kt)Fog output(ml/h)Life time(Hour)
    High frequency atomizer16-1.7BU1.70±0.05≤31000±20%≥0.452505000
    High frequency atomizer16-2.4BU2.45±0.1≤2750±20%≥0.452003000
    High frequency atomizer16-3BU3.0±0.2≤3900±20%≥0.451003000
    High frequency atomizer20-1.7BU1.70±0.05≤31500±20%≥0.453005000
    High frequency atomizer20-2.4BU2.45±0.1≤21450±20%≥0.452505000
    High frequency atomizer20-3BU3.0±0.2≤11600±20%≥0.452505000
    High frequency atomizer25-1.7BU1.66±0.05≤31700±20%≥0.454005000
    High frequency atomizer25-2.4BU2.4±0.1≤11800±20%≥0.454005000

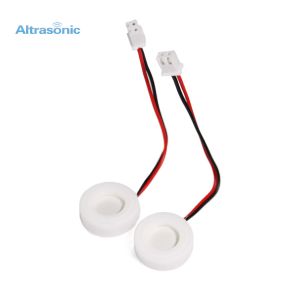

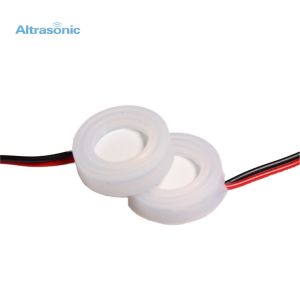

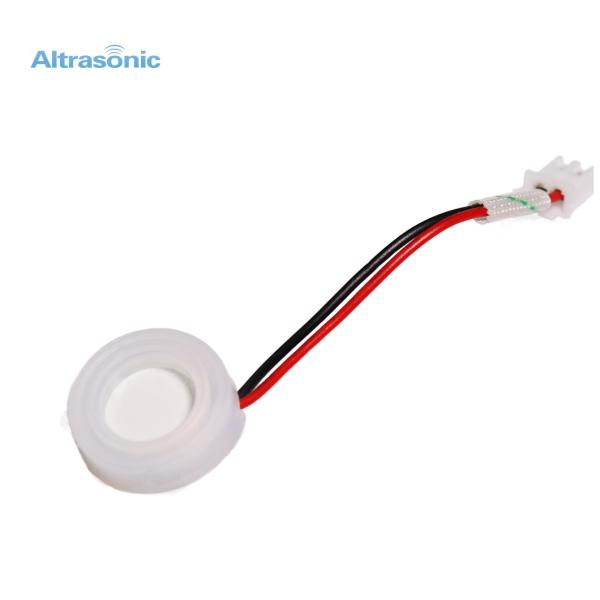

    Pictures:



    Product Advantages:

    1. The high Q value
    2. Small impedance
    3. High amplitude
    4. Good consistency
    5. Slow Performance decay

    Package:
