Chicken Manure Drying Organic Fertilizer Production Line
Product Description
Due to the high-humidity and sticky nature of chicken manure. Our
rotary dryers are optimized on the basis of regular rotary dryers,
making it more efficient to deal with high moisture and sticky
materials. the dryer was designed with a higher Diameter/Length
ratio, unique flight distribution &shape, and effective
internal breaking mechanism.
Poultry manure is rich in nutrients and trace elements that are a
kind of good organic fertilizer. Development of poultry manure as
compound organic fertilizer, it is not only turning waste into
wealth but also reducing environmental pollution and preventing the
spread of the disease. It has good economic and social benefits.
Our company produces manure dryers which belong to compound organic
fertilizer production line equipment.
Working Principle
1.Cow manure: The cow dung contains 14.5% organic matter, N:0.30 ~
0.45%, P:0.15 ~ 0.25%, K:0.10 ~ 0.15%, It is a kind of high value
of the soil fertilizer. The organic matter and nutrient content of
cow dung are lowest than the livestock manure. A slow-acting
fertilizer.
2.Pig manure:
Pig manure contains 15% organic matter and the total nutrient
content is not high,N:0.5 ~ 0.45, P:0.6% ~ 0.5%, K:0.35 ~ 0.45%,Pig
manure texture is fine, composition is complex, containing protein,
fat, organic acids, cellulose, semi cellulose and inorganic salt.
Pig manure containing more nitrogen, carbon, and nitrogen ratio
(14:1). Generally easy to be microbial decomposition.
3.Chicken manure:
Chicken manure contains rich nutrients, Contains: dry matter:89.8%,
crude protein:28.8%, crude fiber:12.7%, digestible protein:14.4%,
nitrogen-free extract:28.8%, phosphorus:2.6%
Calcium:8.7%,Histidine:0.23%,methionine:0.11%, leucine:0.87%,
lysine:0.53%, phenylalanine:0.46%.Through proper processing and
utilization, it can be a very good green organic fertilizer or
chicken feed, Chicken manure as farm manure, have higher efficiency
than pig manure, cow dung, etc. each ton sticky chicken manure
containing plant nutrients :N:11.35 kg, P(P2O5):10.44 kg, K
(K2O):5.45 kg.
In addition, the chicken manure contains a lot of organic matter,
also can be used for making biogas feedstock.

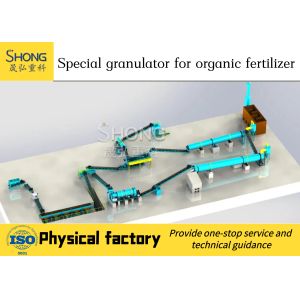

Technological Process:
1. Fermentation Process: The initial stage of the production line
is organic matter fermentation. During the preparation stage, the
compost will be fed into the mixer to be tumbling action and mixed,
in order to further increase the efficiency of the fermentation
speed.
2. Crushing Process: During this process, through the crusher
crushing the compost block, be ready for the pelleting process, If
the efficiency compost fermentation is good, without lumps, this
step can be omitted.
3. Quantitative composition process: If you need to add many kinds
of material in the processing. In order to improve the processing
efficiency and the exact proportion of the ingredients in the
processing. You can use the automatic batching system. The system
contains a number of quantitative belt scales. On the other hand,
if the production is pure organic fertilizer, this step can be
omitted.
4. Pelleting process: Disc pellet mill (also named rotary drum
pellet mill) is widely used in fertilizer granulation. As the core
step of the production line, our equipment can automatically sieve
the most suitable shape of the pellets according to our customer's
demand. After the granulation of fertilizer, it can keep the
release of fertility, greatly slowing the number of artificial
fertilization.
5. Drying process: In order to reshape the pellet shape and better
storage. The humidity of the fertilizer should no more than 14%.
The rotary drum dryer is widely used for drying fertilizer pellets.
6. Cooling process: In order to increase the hardness of fertilizer
pellets. We need to cool the fertilizer pellets after drying them.
The Roller cooling machine can be satisfied with this demand.
7. Screening process: Through the drum screen sieve machine to
sieving the moderate size pellets. The too small or too large size
of fertilizer pellets will be re-crushed and re-granulation.
8. Coating process: Use the roller coating machine to carry on the
coating to the fertilizer granule. In order to prevent particle
adhesion.
9. Packing process: The packing process is the end stage of the
whole plant. Generally, the automatic packing machine is more
efficient in bags for sale.
10. Dust collector system: The ash and dust will be collected from
the whole production line.
11. Associated Equipment: Such as the belt conveyor and bucket
elevator, etc.
Our service
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the
special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working
out proper construction schemes for those new, special or difficult
projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and
a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free
from the using troubles:
1) Assisting the clients preparing for the first construction
scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at
site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
