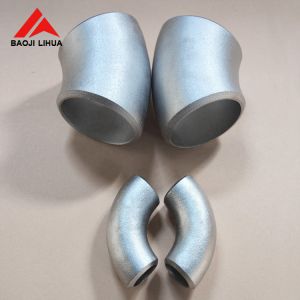

Gr2 Gr7 Gr12 titanium elbow 90 degree price
Titanium elbow has the advantages of smooth inner wall, small heat
medium flow resistance, acid and alkali resistance, long service
life and convenient installation. Widely used in chemical industry,
petroleum, light and heavy industry, electric power, aerospace,
shipbuilding and other basic engineering.
Product Name: Titanium Elbow
Standard: ASME B16.9 ASME B363
Material: Gr1, Gr2, Gr7, Gr12
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Type: Seamless/Welded
Technique: Extruded,welded
MOQ:5 PCS
Delivery time:
If in stock, 3-54 working days
If need to manufacture, 15-35 working days
| Tensile Strength(min) | Yeild Strength(min) | Elongation(%) |
| ksi | MPa | ksi | MPa | |
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade2 | 50 | 345 | 40 | 275 | 20 |
Grade 7 | 50 | 345 | 40 | 275 | 20 |
Grade 12 | 70 | 483 | 50 | 345 | 18 |
Titanium elbows quality inspections:
Dimention inspection, Tensile testing, UT ,PT ,Chemical composition
inspection,
Hydrodtatic test, Eddy current inspection,Radiographic
inspection,Thickness inspection,PMI inspection
Titanium 90 Degree Elbow Data
| Schedule 10S Light N.P.S. | Schedule 40S Standard N.P.S. |
| Nominal Pipe Size | Outside Diameter | Center to Face | Inside Diameter | Wall Thickness | Approx. Wt. in Lbs./Kgs. | Inside Diameter | Wall Thickness | Approx. Wt in Lbs./Kgs. |
| in | mm | in | mm | in | mm | in | mm | in | mm | lb | kg | in | mm | in | mm | lb | kg |
| 1/2″ | 15 | 0.84 | 21.34 | 1.50 | 38.10 | 0.67 | 17.12 | 0.08 | 2.11 | 0.08 | 0.04 | 0.62 | 15.80 | 0.11 | 2.77 | 0.10 | 0.05 |
| 3/4″ | 20 | 1.05 | 26.67 | 1.13 | 28.58 | 0.88 | 22.45 | 0.08 | 2.11 | 0.09 | 0.04 | 0.82 | 20.93 | 0.11 | 2.87 | 0.11 | 0.05 |
| 1″ | 25 | 1.32 | 33.40 | 1.50 | 38.10 | 1.10 | 27.86 | 0.11 | 2.77 | 0.17 | 0.08 | 1.05 | 26.64 | 0.13 | 3.38 | 0.20 | 0.09 |
| 1-1/4″ | 32 | 1.66 | 42.16 | 1.88 | 47.63 | 1.44 | 36.63 | 0.11 | 2.77 | 0.29 | 0.13 | 1.38 | 35.05 | 0.14 | 3.56 | 0.32 | 0.15 |
| 1-1/2″ | 40 | 1.90 | 48.26 | 2.25 | 57.15 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 | 1.61 | 40.89 | 0.15 | 3.68 | 0.50 | 0.23 |
| 2″ | 50 | 2.38 | 60.33 | 3.00 | 76.20 | 2.16 | 54.79 | 0.11 | 2.77 | 0.65 | 0.29 | 2.07 | 52.50 | 0.15 | 3.91 | 0.89 | 0.40 |
| 2-1/2″ | 65 | 2.88 | 73.03 | 3.75 | 95.25 | 2.64 | 66.93 | 0.12 | 3.05 | 1.08 | 0.49 | 2.47 | 62.71 | 0.20 | 5.16 | 1.72 | 0.78 |
| 3″ | 80 | 3.50 | 88.90 | 4.50 | 114.30 | 3.26 | 82.80 | 0.12 | 3.05 | 1.54 | 0.70 | 3.07 | 77.93 | 0.22 | 5.49 | 2.75 | 1.25 |
| 3-1/2″ | 90 | 4.00 | 101.60 | 5.25 | 133.35 | 3.76 | 95.50 | 0.12 | 3.05 | 2.14 | 0.97 | 3.55 | 90.12 | 0.23 | 5.74 | 3.57 | 1.62 |
| 4″ | 100 | 4.50 | 114.30 | 6.00 | 152.40 | 4.26 | 108.20 | 0.12 | 3.05 | 2.72 | 1.23 | 4.03 | 102.26 | 0.24 | 6.02 | 5.26 | 2.39 |
| 5″ | 125 | 5.56 | 141.30 | 7.50 | 190.50 | 5.30 | 134.49 | 0.13 | 3.40 | 4.58 | 2.08 | 5.05 | 128.19 | 0.26 | 6.55 | 8.65 | 3.92 |
| 6″ | 150 | 6.63 | 168.28 | 9.00 | 228.60 | 6.36 | 161.47 | 0.13 | 3.40 | 6.86 | 3.11 | 6.07 | 154.05 | 0.28 | 7.11 | 13.75 | 6.24 |
| 8″ | 200 | 8.63 | 219.08 | 12.00 | 304.80 | 8.33 | 211.56 | 0.15 | 3.76 | 13.50 | 6.12 | 7.98 | 202.72 | 0.32 | 8.18 | 27.00 | 12.24 |
| 10″ | 250 | 10.75 | 273.05 | 15.00 | 381.00 | 10.42 | 264.67 | 0.17 | 4.19 | 25.00 | 11.34 | 10.02 | 254.51 | 0.37 | 9.27 | 48.50 | 22.00 |
| 12″ | 300 | 12.75 | 323.85 | 18.00 | 457.20 | 12.39 | 314.71 | 0.18 | 4.57 | 34.00 | 15.42 | 12.00 | 304.80 | 0.38 | 9.53 | 75.00 | 34.01 |
| 14″ | 350 | 14.00 | 355.60 | 21.00 | 533.40 | 13.62 | 346.05 | 0.19 | 4.78 | 46.00 | 20.86 | 13.25 | 336.55 | 0.38 | 9.53 | 89.00 | 40.36 |
| 16″ | 400 | 16.00 | 406.40 | 24.00 | 609.60 | 15.62 | 396.85 | 0.19 | 4.78 | 60.00 | 27.21 | 15.25 | 387.35 | 0.38 | 9.53 | 116.00 | 52.61 |
| 18″ | 450 | 18.00 | 457.20 | 27.00 | 685.80 | 17.62 | 447.65 | 0.19 | 4.78 | 75.00 | 34.01 | 17.25 | 438.15 | 0.38 | 9.53 | 154.00 | 69.84 |
| 20″ | 500 | 20.00 | 508.00 | 30.00 | 762.00 | 19.56 | 496.93 | 0.22 | 5.54 | 126.00 | 57.14 | 19.25 | 488.95 | 0.38 | 9.53 | 189.00 | 85.71 |
| 24″ | 600 | 24.00 | 609.60 | 36.00 | 914.40 | 23.50 | 596.90 | 0.25 | 6.35 | 177.00 | 80.27 | 23.25 | 590.55 | 0.38 | 9.53 | 265.00 | 120.18 |
Detailed images:
Baoji Lihua Non-ferrous Metals Co.,Ltd found in 2006, lies in Baoji
city--"The Titanium Valley of China. We are specialized in
manufacturing, reaseaching and marketing titanium. All our products
are mainly exported to Europe, USA, Australia, Middle East and
South East Asia. Besides, our products are manufactured either in
accordance with the leading regulatory international and domestic
standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS,
GB, JB, HG, SH standards, or according to the drawings specified by
purchasers. For the material, we mainly produce titanium and
titanium alloy, nickel and nickel alloy.
