F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A Trench Field Stop

    Buy cheap F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A  Trench Field Stop from wholesalers

    Buy cheap F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A  Trench Field Stop from wholesalers
    • Buy cheap F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A  Trench Field Stop from wholesalers

    F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A Trench Field Stop

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : F3L600R10W4S7FC22BPSA1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

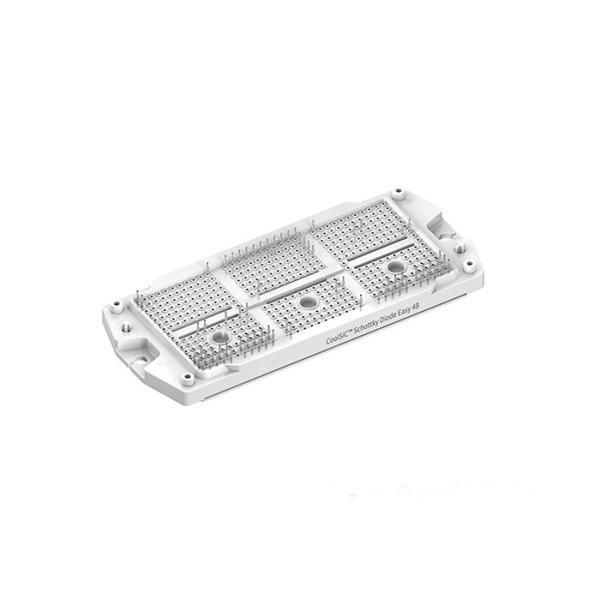

    F3L600R10W4S7FC22BPSA1 IGBT Module 950V 310A Trench Field Stop

    F3L600R10W4S7FC22BPSA1 950V 310A IGBT Module Trench Field Stop Three Level Inverter


    Detailed Description

    F3L600R10W4S7FC22BPSA1 is 950 V, 600 A 3-Level IGBT module with TRENCHSTOP™ IGBT7 and 1200 V CoolSiC™ Schottky Diode.


    Product Attributes

    Product Status

    Active

    IGBT Type

    Trench Field Stop

    Configuration

    Three Level Inverter

    Voltage - Collector Emitter Breakdown (Max)

    950 V

    Current - Collector (Ic) (Max)

    310 A

    Power - Max

    20 mW

    Vce(on) (Max) @ Vge, Ic

    2.25V @ 15V, 400A

    Current - Collector Cutoff (Max)

    1 mA

    Input Capacitance (Cies) @ Vce

    49.2 nF @ 25 V

    Input

    Standard

    NTC Thermistor

    Yes

    Operating Temperature

    -40°C ~ 150°C (TJ)

    Mounting Type

    Chassis Mount

    Package / Case

    Module


    Features
    Electrical features
    VCES = 950 V
    IC nom = 600 A / ICRM = 800 A
    CoolSiCTM Schottky diode gen 5
    TRENCHSTOPTM IGBT7
    Tvj,op = 150°C
    Mechanical features
    Package with CTI > 400
    PressFIT contact technology
    Integrated NTC temperature sensor


    Potential applications
    Solar applications
    Three-level applications


    Package outlines
