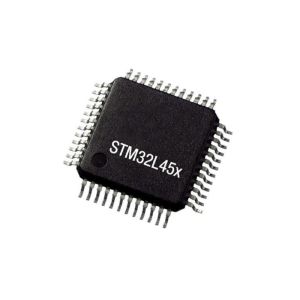

Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48

    Buy cheap Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48 from wholesalers

    Buy cheap Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48 from wholesalers
    • Buy cheap Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48 from wholesalers

    Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : STM32L452CCU6
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48

    Integrated Circuit Chip STM32L452CCU6 Microcontrollers IC STM32L452 UFQFN48


    Product Description

    STM32L452CCU6 devices are ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz.
    STM32L452CCU6 devices embed high-speed memories (Flash memory up to 512 Kbyte, 160 Kbyte of SRAM), a Quad SPI Flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.


    Specification Of STM32L452CCU6

    Number of I/O
    38
    Program Memory Size
    256KB (256K x 8)
    Program Memory Type
    FLASH
    RAM Size
    160K x 8
    Voltage - Supply (Vcc/Vdd)
    1.71V ~ 3.6V
    Data Converters
    A/D 10x12b; D/A 1x12b
    Oscillator Type
    Internal
    Operating Temperature
    -40°C ~ 85°C (TA)
    Mounting Type
    Surface Mount
    Package / Case
    48-UFQFN Exposed Pad
    Supplier Device Package
    48-UFQFPN (7x7)


    Features

    • Ultra-low-power with FlexPowerControl
    • 1.71 V to 3.6 V power supply
    • -40 °C to 85/125 °C temperature range
    • 145 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
    • 22 nA Shutdown mode (5 wakeup pins)
    • 106 nA Standby mode (5 wakeup pins)
    • 375 nA Standby mode with RTC
    • 2.05 uA Stop 2 mode, 2.40 µA with RTC
    • 84 uA/MHz run mode (LDO Mode)
    • 36 uA/MHz run mode (@3.3 V SMPS Mode)
    • Batch acquisition mode (BAM)
    • 4 us wakeup from Stop mode
    • Brown out reset (BOR)
    • Interconnect matrix

    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
