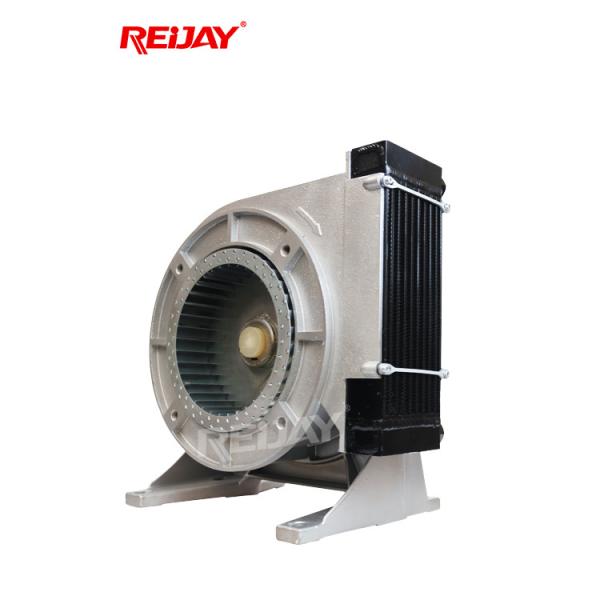

    Gearbox Hydraulic Pump Bellhousing High Strength 26 Bar With Cooler

    Ask Lasest Price
    Brand Name : Reijay
    Certification : ISO CE
    Price : USD10.00-USD50.00
    Payment Terms : T/T, D/P, Western Union
    Supply Ability : 20000 pieces/ month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Gearbox Hydraulic Pump Bellhousing High Strength 26 Bar With Cooler

    High strength and good heat dissipation Hydraulic Pump Bellhousing with cooler for hydraulic system


    Hydraulic Pump Bellhousing with coolers is being widely used in hydraulic systems. REIJAY has launched a new line of compact coolers. As a Hydraulic Pump Bellhousing manufacturer, REIJAY has introduced into its products cooler bell jars using prismatic standard cooling elements.


    Introduction to the Hydraulic Pump Bellhousing with cooler:


    1. For connecting the IEC standard and NEMA standard motor and hydraulic pump


    2. The motor shaft and the pump shaft are self-aligned, and the dimensions are manufactured in accordance with the VDMA24561 standard, which can be used with standard brackets for heavy loads


    3. Aluminum alloy material, die-casting by medium pressure machine, lightweight, dense internal structure, high strength, good heat dissipation


    4. Circulating cooling, no need for additional air-blowing equipment, compact structure, easy installation, and environmental protection


    5. Test pressure: According to DIN50104 standard, the standard static pressure is 26bar, the maximum can reach 40bar; the working pressure: 16bar


    6. Structural composition: die-cast aluminium alloy shell, cooling module, fan impeller with coupling


    7. Optional built-in shock absorption


    Technical Specifications


    Type of bell housingE-Motor Frame sizePower [kW]Shaftend Dxl [mm]

    Foot

    bracket

    D1D2D3D4d1 (min)

    d1

    (min)

    d2d3LL1FGG1H2
    RC 400/204/...200 L3055x110PTFS400400350300300505026526020426618M1622
    RC 400/228/...         (DF350)262(DF350)228
    RC 400/256/...         50259283256
    RC 450/234/...225 S3760x140PTFS45045040035035080(DV400)301(DV400)23426618M1620
    RC 450/262/...225 M45       80297362262
    RC 450/285/...         (DF401)276(DF4O1)285
    RC 450/315/...            315
    RC 550/248/...250 M5565x140PTS550055050045045080 362 24826618M1620
    RC 550/265/...280 S+M75-9075x140       359 265
    RC 550/275/...          276 275
    RC 550/295/...            295
    RC 550/315/...            315
    RC 660/310/...315 S+M+L110-13280x170PTS66066060055055080 414 31032623M2020
    RC 660/330/... 160-200        276 330
    RC 660/345/...            345
    RC 800/315/..**355 L250-31595x170 800740680680125 468 315601023M2035
    RC 800/335/..**400 L355-400100x210       474 335
    RC 800/350/..**          435 350
    RC 800/443/..**          490 443

    Our Strategic Partners


    Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.


    FAQ

    Q: Who are we?

    We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.


    Q: How can we guarantee quality?

    Always a pre-production sample before mass production; Always final Inspection before shipment


    Q: What information should I tell you to confirm the product?
    Motor drawing or other technique parameters


    Q: What can you buy from us?

    Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.


    Q: Why should you buy from us, not from other suppliers?

    We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.


    Q: What is your product warranty period?
    We offer 2-10 years of service life since the vessel departure date left China.


    Q: What are your terms of payment?
    Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.


    Q: What services can we provide?

    Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery;

    Accepted Payment Currency: USD, EUR, HKD, CNY;

    Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

    Language Spoken: English, Chinese, Spanish
