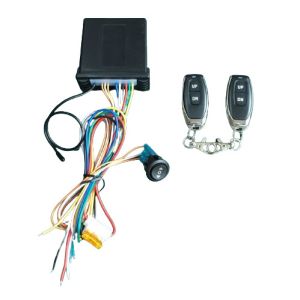

12V Linear Actuator Remote Controller with Safety Protection
Control unit LS-RSK-2b (safety)is designed for precise and reliable
actuator management. It features built-in overloading safety
functions that automatically reverse the actuator movement to
prevent damage in case of an overload. The controller supports dual
operation modes, allowing you to control the actuators via both
remote and wired rock switches for added flexibility. This
combination ensures safe, versatile, and convenient actuator
control for various applications
Features:
1. Remote control 1 or 2 actuators moving in parallel
2. Reversing moving immediately in case overloading for safety
3. Pressure detection sensitivity adjustable
4. Remote and wired rock switch dual operation
5. LED output for option
6. Remote button press once or keeping pressing for option
7. Remote learning code, new remotes programmable
8. Different remotes for choice
Overcurrent Protection inbuilt for Safety
Main Specifications:
Working Voltage | 12V DC |
Frequency | 433.92 MHz |
Max Current | 15A |
Remote Range | 50 meters Max |
Working Temperature | -30～+80°C |
IP rating | IP65 (waterproof and dustproof housing case) |
Certification | CE, FCC by SGS |
Questions and Answers:
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance test
Q: Is the product ready to be dispatched?
A: No, the actuators are tailored products, so we need to produce
the items per your request.
Q: How long can I get my order, what's the lead time?
A: It usually takes about 10~15 working days to produce samples.
But it may vary from time and real situation sometimes.
Q: Do you have after-sale service?
A: Yes. We offer technical support and fast after-sales service.
Feel free to contact us if you encounter any questions.
Q: What is your payment?
A: We accept TT, LC, Paypal
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is
specialized in Auto motion, motion remote control systems,
automobile safety and security electronics for more than 10
years.With an experienced R&D department of 19 engineers team,
we can provide customized design and molding to support your
OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide
technical support and services for Linear Actuator Controllers. Our
team of engineers and technicians are available to help you
troubleshoot any problems you may be having with your Linear
Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is
sealed with tape and labeled with the product name and shipping
address. Your item will be shipped via UPS, FedEx , DHL or other
shipping courier you may prefer.
