Automatic Double Head Powder Filling Machine Milk Powder Protein
Powder Glucose Rice Powder
Main Parameters
| Metering Method: | Twin screw filling heads metering |
| Filling Weight: | 100-2000g |
| Container Size: | Φ60-135mm；H60-260mm |
| Accuracy: | 100-500g,≤±1g；≥500g,≤±2g |
| Speed: | ＞50cans/min(#502cans)u, ＞55cans/min(#300~#401)up |
| Working Voltage: | AC380V,50Hz/60Hz |
| Power: | 3.4kw |
| Weight: | 450kg |
| Compressed air: | 6kg/cm 0.2cbm/min |
| Dimension: | 2650*1040*2300mm |
| Material Box volume: | 50L(main)30L(supplementary) |

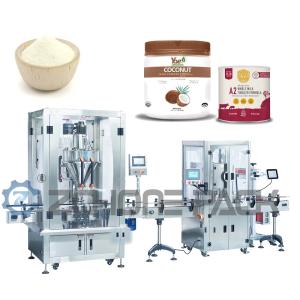

The automatic double-head powder filling machine is a
double-station filling machine with a single-row main and auxiliary
double-head filling system, which mainly completes high-precision
filling and metering work. Suitable for filling milk powder,
protein powder, chicken powder, glucose, rice flour, cocoa powder,
solid drinks, etc.
Main features:
1. Single row and double head filling, main filling and
supplementary filling to ensure high filling accuracy;
2. Servo and pneumatic systems control the tank support and
horizontal tank movement, with accurate positioning and fast speed;
3. Servo motor and servo drive control screw, stable performance
and high precision;
4. All stainless steel structure; horizontal open material box
(inside and outside polished), cleaning is very convenient;
5. PLC control, touch screen man-machine interface display, easy to
operate;
6. Weighing system with high response speed to ensure high filling
speed and high precision can be achieved;
7. Equipped with dust removal device, connected to negative
pressure pipeline, no dust pollution of the environment.
Q1:Do you have manual or operation video for us to know more about
the machine?
Yes, not only manual or operation video, 3D drawing also available
to make as per your design,also the video we can make oftesting the
material from our packaging machine if your packing goods easier
for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your
cost, we will send you a video of full details machine installation
and assist you till the end.
Q3:How can we make sure about the machine quality after we put the
order?
Before delivery, we will send you the pictures and videos for you
to check the quality, and also you can arrange for quality checking
by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our
agent to see if it available, and most of the area is ok for us to
clearing and sending in your countries.
