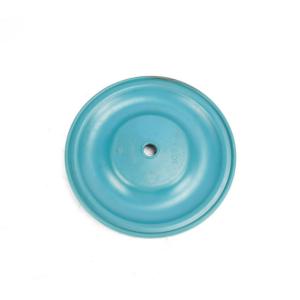

Corrosion Resistance Fiber Rubber Diaphragm Seals

Corrosion Resistance Fiber Rubber Diaphragm Seals Pneumatic Pump Valve Diaphragm

Pneumatic Pump Diaphragm​ Introduction:

• The rubber wrapped diaphragm is made of various rubber materials and nylon cloth. Special adhesive is used in the bonding process to ensure the bonding strength and firm adhesion in the working process. Compared with the pure rubber diaphragm, the performance improvement of the rubber wrapped diaphragm has been verified by the actual experiments of customers and is highly appraised by the industry. Therefore, in the subsequent production process, the customer will request the diaphragm produced by the cloth clip process. Therefore, the application of rubber wrapped diaphragm in the pump and valve industry is more and more widespread, such as electromagnetic pulse diaphragm dust removal industry, metering pump diaphragm and diaphragm pump diaphragm beverage pharmaceutical industry, as well as steel, chemical industry, coal mine and other industries.

• Pneumatic diaphragm pump is the use of compressed air as power source, for all kinds of liquid with particles, high viscosity, easy to play, highly toxic liquid and corrosive liquid and gelatinous liquid do not need to fill water, can be drained to absorb, fire and explosion-proof. With self-priming pump, impurity pump, shield pump, submersible pump, mud pump and all other functions, pump body material is aluminum alloy, cast iron, stainless steel, engineering plastics, fluorine plastic, QBY pneumatic diaphragm pump diaphragm with nitrile rubber, neoprene rubber, fluorine rubber, PTFE to meet the needs of different users. It has been adopted by domestic petroleum, chemical, electronic, ceramic, textile system and other units, placed in various special occasions, used to pump a variety of medium which conventional pump can not pump, have achieved satisfactory results.

Pneumatic Pump Diaphragm​ PTFE Material:

• PTFE is suitable for low and high temperature environment

Poly Tetra Fluoro Ethylene (PTFE) is a fluoropolymer synthesized from Ethylene fluoride, which is a kind of fluoroplastic. The chemical inertia of PTFE can prevent cross-linking, so there is no "memory", that is, can not be restored to its original shape as elastomer, the material under tension will produce creep and deformation, the so-called "cold flow" phenomenon. PTFE has a wide range of temperature application (-200~260℃), with good extrusion resistance, corrosion resistance, no aging problem, water and ultraviolet resistance, no toxicity and other characteristics. When the temperature is above 130℃, the simple PTFE diaphragm will produce large deformation, resulting in deformation and damage of the diaphragm.

Our service:

1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.

Hongum is specialized in research, production, sales, and distribution. It is located in the base of technology transfer of CAS, committed to research and development of new materials in both rubber and plastic industry.

Hongum supply various of rubber diaphragms, dampers and all kinds of other rubber and plastic hardwares for boat, yacht, wharf and sea farm industries, such as marine float, fast ray paddle, and other boat and wharf rubber and plastic accessories.

We have a full set of advanced production equipment from vulcanizing to final shipment, with international standards, using the same advanced production process, also have a full range of laboratory testing equipment, can conduct comprehensive experiments and test a variety of rubber and plastic material properties, also product performance tests. We have the most professional technical team which can integrate your idea and provide the best professional advice. With the most professional service and stable quality we have won the unanimous approval of the majority of domestic customers, and exported to Russia, the United States, Canada, Britain, India, Singapore and other international markets.

We always adhere to the "service-oriented, innovative, and provide customers with professional solutions" concept to create value, to achieve the cooperation successful and win together.

Our team has a number of person who love new material industry, full of passion, and the same mind. Our needs are derived from the public, we have the professional technical team for seal integration, we are your all-perspective communication consultant.
