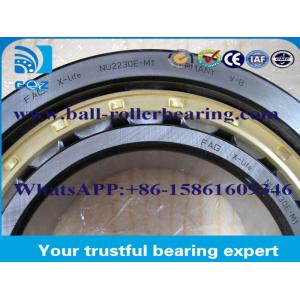

High Speed Rotation Brass Cage Cylindrical Roller Bearing For Automotive / Rolling Mill

1. Cylindrical Roller Bearing Specification :

2. Cylindrical Roller Bearing ​:

Cylindrical roller bearings, with the least friction quotiety, are suitable for high-speed rotation. The rollers have linear contact with the raceway, and the bearings can carry heavier radial load. NJ and NF type of bearings have some loading capacity in one-way axial direction, and NH and NUP types can accept certain axial load in two directions. With the linear contact between cylindrical rollers and raceways, provides a high load capacity, which make the cylindrical roller bearings can carry big radial load and impact load.

3 . Cylindrical Roller Bearing Features :

N: The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. Pressed steel and machined brass cages and allowed.

NU: The outer ring has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. Pressed steel and the machined brass cages are allowed.

NJ: The outer ring has two integral flanges and the inner ring has only one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction. Pressed steel and machined brass cages are allowed.

NF: The inner ring has two integral flanges and the outer ring has only one integral flange. The bearings can locate a shaft axially in one direction. Pressed steel and machined brass cages are allowed.

NUP: The outer ring has two integral flanges and the inner ring has one integral flange with one separating as flange ring. The bearings can be used as locating bearings, i.e. They can provide axial location for a shaft in both directions.

4 . Competitive Advantage:

1. Bearing manufacturer
2. ISO 9000/9001/9004/19011: 2000
3. Produce by customer's needs
4. High speed, low noise
5. Bearing steel
6. The most competitive price

5. APPLICATION:

Motor, petroleum, milling and heavy loading machines, etc.


6 . We also can offer following bearings :

  Established in 1999, Wuxi Guangqiang Bearing Trade Co.,Ltd works hard in researching and manufacturing high quality bearings and rely on it's advantages of strong technologies, advanced equipment, professional technical team, quality production and reasonable prices has gain a broad recognitiongain and won the widely support and trust by customers in bearing fields.

  For decades, the company established and completed the quality management system of scientific standardization in line with international standards. In 2005 they won the title of Chinese famous brand ranging from tapered roller bearings, cylindrical roller bearings, spherical roller bearings, thrust ball bearing, angular contact ball bearings, deep groove ball bearings and various non-standard bearings etc.

  Our products are widely used in auto industries, construction machinery industries, electric power industries, pharmaceutical field, mining machinery, printing industries, highway engineering machinery, steel industires, textile machine industries and so on.

  Capable of solving all your bearing issues with its first-class professional advisers and skilled engineers, Wuxi Guangqiang Bearing Trade Co.,Ltd embrace any inquiry, negotiation, cooperation from new and old friends at any time.
