35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

    Buy cheap 35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic from wholesalers

    Buy cheap 35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic from wholesalers
    • Buy cheap 35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic from wholesalers
    • Buy cheap 35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic from wholesalers
    • Buy cheap 35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic from wholesalers

    35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

    Ask Lasest Price
    Brand Name : HENGXIANG
    Model Number : KB35
    Certification : CE,ISO9001
    Price : negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability : 100K pieces per year
    Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order
    • Product Details
    • Company Profile

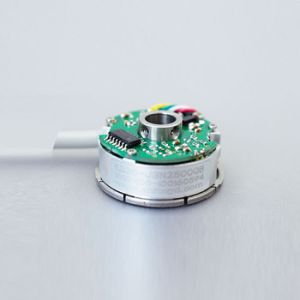

    35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

    35mm mini incremental rotary encoder hollow shaft UVW signal servo motor robotic


    1. Feature: Miniature size 35mm, Incremental encoder, small volume, extra thin, unique structural design, easy to install.


    2. Application: Automation control like Servo motor, textile industry, robot, small instrument etc.


    3. Important parameters:

    External dia: 35mm, thickness 17mm,

    Hollow shaft: Hollow shaft 6mm/8mm,

    Resolution: High resolution 1024-14400ppr, UVW signal 4pole/6pole/8pole

    Supply voltage: DC5V; DC8-30V

    Outlet type: Radial socket or radial cable.


    Product Description
    Items
    Basic parameters
    Brand
    HENGXIANG
    Encoder type
    Incremental Type
    External diameter
    35mm
    Thickness
    17mm
    Hollow shaft type
    Through hole
    Hollow shaft diameter
    6mm;8mm
    Resolution
    1024；2048；2500；3600；5000；7200；10000；14400
    Output phase
    2=AB；3=A+B+Z; 4=±A±B；6=±A±B±Z；12=±A±B±Z±U±V±W
    Supply voltage
    DC5V; DC8-30V
    Outlet type
    Radial connector; Radial cable
    Output mode
    N=OC(NPN); C=TTL(DC5V)
    E=HTL(DC8-30V); S=TTL(DC5V)
    Consumption current
    120mA Max
    Top response frenquency
    100kHZ; 200kHZ; 300kHZ
    GND
    not connected to the encoder
    Starting torque
    less than 5.9x10-³N.m
    Inertia moment
    less than 1.5x 10-6kg.m2
    Environmental temperature
    Operating:-20 ～+100°C；
    storage:-25 ～+110°C
    Enviromental humidity
    Operating and storage: 35-85%RH(noncondensing)
    Protection
    IP50
    Material
    Aluminium alloy
    Certification
    CE
    package
    Carton box
    Net weight
    About 60g

    Model Selection
    ※(Contact us with the model and quantity to get the accurate price)


    Company Introduction
    ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .

    "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own
    invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
    Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
    all customers to visit our company, to review and custom "HengXiang" brand products .
    Packing&Shipping
    Each single encoder is packed into a single safe carton with protecting bubble.
    Then all encoders will be put into a bigger carton to prepare shipment.
    FAQ
    Q: What’s your MOQ?
    A: 1pcs
    Q: How to order your encoder?
    A: Contact us, or email us, we will reply you as soon as possible.
    Q: Are you a factory or a trading company?
    A: we are 100% factory with our brand.
    Q: What’s your brand?
    A: HENGXIANG
    Q: Can you product ship to our country?
    A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
    Q: How to get the latest price?
    A: Contact us and tell me the encoder model selection.
    Q: How to select a right encoder model?
    A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
    Q: Do you offer technical support?
    A: Yes, we have professional technician who can solve all your doubts.
    Q: Can you factory offer a sample?
    A: Yes, sample can be provided.
    Q: How to pay for a sample?
    A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
    Q: Do you have some videos of your products?
    A: Yes, you could visit our YOUTUBE page for encoder videos.
    Q: What’s your encoder product guarantee policy?
    A: 1 year quality warranty and life-long technical support.
