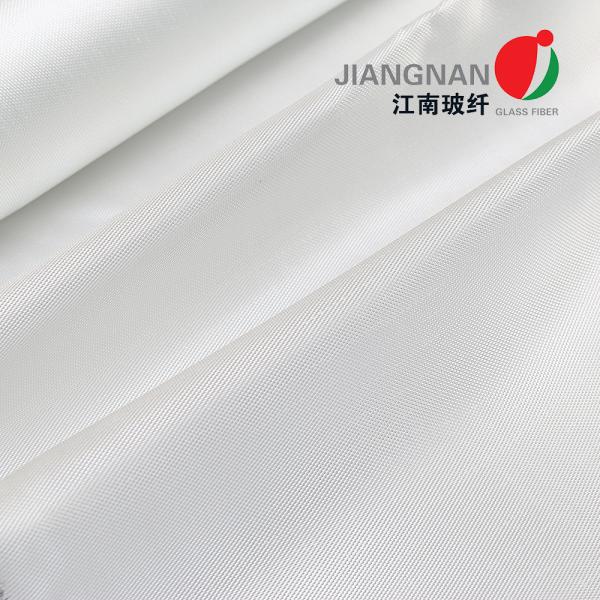

High Density Ultra Thin Fiber Glass Fabric Reinforcements Fiberglass Cloth

1. Descriptions:

Glass fiber cloth is mainly used in thermal insulation, fire prevention, and flame retardant. It can absorb a lot of calories and prevent flame through, cutting off the air. Glass fiber cloth is used for Hand Lay-up, mainly in hulls, cooling towers, storage tanks, vessels, vehicles, tanks, and the structure of the building materials.

2. Specification

Specification-1080
NO.	Technical Data	SI Units	US System
1	Weave Style	Plain
2	Fabric Weight	48g/m2	1.41oz/yd2
3	Width (cm)	107 127 157
4	Length (m)	2500
5	Yarn Density
	Ends Warp	23.6/cm	60/in
	Picks Weft	18.5/cm	47/in
6	Yarn
	Warp	EC5 11	ECD 450 1/0
	Weft	EC5 11	ECD 450 1/0
7	Breaking Strength
	Warp	210N/cm	120lbf/in
	Weft	157N/cm	90lbf/in
8	Thickness	0.06mm	2.3mils

3. Factors of Scoring In Quality Control

• Fabric Quality

1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

• ​Packaging :

1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch-wrapped.

• High Quality:

1. The fiberglass yarns are supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,

• Low Price:

1. Our material factory locates next to a power station, so we produce glass fiber with low electricity and low water cost.

4. Product Application

Style 1080 1.4 oz. E-glass is a lightweight plain weave fabric woven. It can be used as the surface layer in the vacuum bag structure to obtain a smooth surface. It is an excellent multi-purpose lightweight glass fiber used for finishing surfaces and inside molds because of its high durability. At the same time, It uses epoxy resin and polyester compatible surface treatment to enhance wettability and is suitable for wet lamination, vacuum bagging, and resin infusion manufacturing.

5. Product Features

Improve Surface Toughness and Strength, Light Drape, High tensile strength, Dimensional stability, High heat resistance, Fire resistant, Good thermal conductivity, Good chemical resistance, Outstanding electrical properties, Durable, Economical

6. More Pictures for Product and Package

7. Related Products (Fireproof Fabric Series)

Related Electronnic Industry Fabrics and Fireproof...

Engage in continuous innovation and high-quality leads to a bright future.

Changshu Jiangnan Glass Fiber Co., Ltd is one of the leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials in China. The Company was established in 1956 and it is located in the famous Chinese cultural and historic city –Changshu. The plant covers a total area of more than 70,000 square meters. It is only 80km from Shanghai port and 200km from Ningbo port. The superior location makes it enjoy a pleasant climate all year round and convenient transportation facilities, such as by the Highway along the Yangtze River, Sujiahang Highway, and Changshu Port.

Presently, we have adopted the advanced high-speed rapier weaving machine, three twist yarn machines equipped with variable frequency unit controllers, and two-meter-width coating equipment to ensure the leading supplier to the market with powerful output and guaranteed quality. Jiangnan produces over 8,000 tons of fiberglass yarn, 50 million square meter alkali-resistant fiberglass mesh, 2.4 million pieces of fire blankets, 10 million meters of fiberglass cloth with silicone, polyurethane, Acrylic, EPDM coating, and 8 million square-meter of fabric used in the electronic industry and fireproof. The products are widely used in the field of construction, transportation, electricity, insulation material, wind power generation, and smoke curtains.

Moreover, our production and quality control team has more than 30 years of development and research experience in various fiberglass products. Meanwhile, Jiangnan has its own fire-test laboratory, according to the latest fire blanket standard. We have routine and extensive cooperation with world-leading testing organizations. We also have our own fiberglass yarn raw material subsidiary in Shandong - Shandong Jinming Glass Fiber Co., Ltd. Additionally, Jiangnan has an R&D investment and production capacity for blended fiberglass fabrics and special glass fiber fabrics.

Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS, and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.

Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
