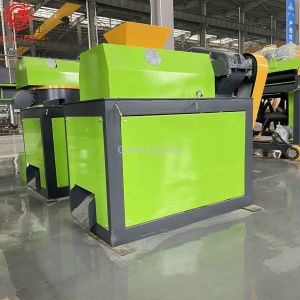

1.5TPH - 2TPH NPK Fertilizer Granulator Roller Extrusion Granulator
Working Theory of NPK Fertilizer Granulator
1. This series of roller granulation belongs to extrusion sliding
model, whose working principle is: the belt and belt pulley are
driven by an electric motor, and transmitted to the drive shaft by
reducer, and work in the same direction through the open gear and
the passive shaft.
2. The material is added from the feed hopper, extruded by the
roller, demoded and pelleted, and passed through a pair of chains
to the crushing screen studio, where the finished product pellets
(balls) are screened and separated, and then the material is
returned and mixed with new materials for granulation.
3. With the continuous rotation of the motor and the continuous
entry of materials, mass production can be realized.
Specifications of NPK Fertilizer Granulator
| Model | DGZ—1 | DGZ—1.5 | DGZ—2 |
| Output | 1—1.5t/h | 1.5—2t/h | 2—2.5t/h |
| Forming Ratio | ≥85% | ≥85% | ≥85% |
| Power | 15kw | 18.5kw | 22lw |
| Feeding moisture | 2%—5% |
Feature of NPK Fertilizer Granulator
- Wide application like chemical fertilizer, food and medicine
granules production, etc.
- Materials can be normal Carbon steel or Stainless Steel
Application Of NPK Fertilizer Granulator
Our company wholeheartedly provides users with technical services
for complete sets of compound fertilizer equipment, including the
overall layout design, production technical guidance, complete set
supply, commissioning and production services for the annual output
of 10,000 to 100,000 tons of non-drying equipment.
