    3.15m Shaft Type Drum Twister Machine For Carbon Fiber 7-35mm

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : DIN3150
    Certification :
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

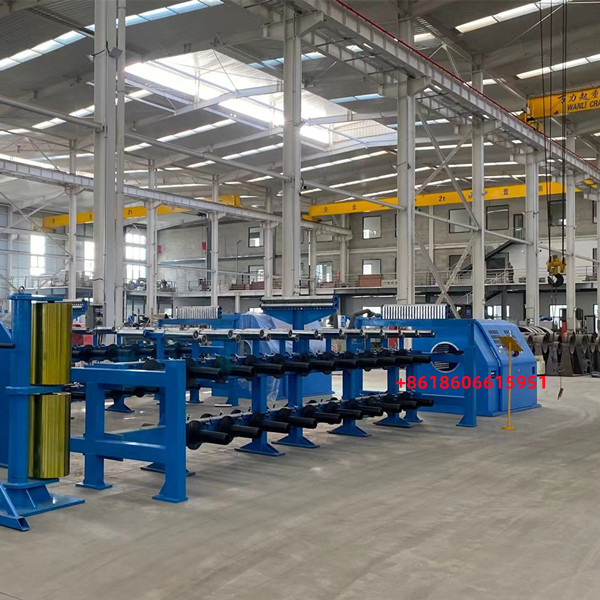

    3.15m Shaft Type Drum Twister Machine For Carbon Fiber 7-35mm

    3.15m Drum Twisting Line - Shaft Type Drum Twister for Carbon Fiber 7-35mm


    1.Description


    Drum Twister Type armoring machine is used for laying-up of large section, long length power cables. The line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. The line is used for steel wires armoring of power cables, too.


    2.Main Specification


    Main Technical Data:
    ModelJPD-2500JPD-3150JPD-3600
    Max.cabling ODΦ20~Φ120Φ25~Φ130Φ25~Φ130
    Max.rotation speed of T/U & P/O (RPM)503030
    Cabling pitchcan be adjusted, step-less
    Max.Linear speed (m/min)504040
    Max.pulling forceStandard3000
    Armoring with 96 steel wires5000
    Central P/O reelΦ2500Φ3150Φ3600
    P/O reelΦ1600Φ2000Φ2500
    T/U reelΦ2500Φ3150Φ3600
    Armoring steel wire reelΦ500Φ630Φ630
    Main motor power (KW)455575
    Central P/O motor power (KW)221518.5

    3.Main Parts


    1 Φ2000 rotating pay-off stand(with lifting platform)

    2 Pay-off stand of filling yearns

    3 Guiding rollers stand

    4 Three row cables assembly die set

    5 Taping head (non-metallic tapes)

    6 4T Rotating belt caterpillar (having meter counter)

    7 Φ3150 rotating take-up stand with traverse(with lifting platform)

    8 Electric transmission and control system

    9 Pneumatic hydraulic system

    10 Safe fences

    ​11 2000 central pay-off

    12 Steel wire pay-off syste,
