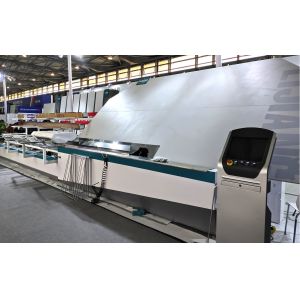

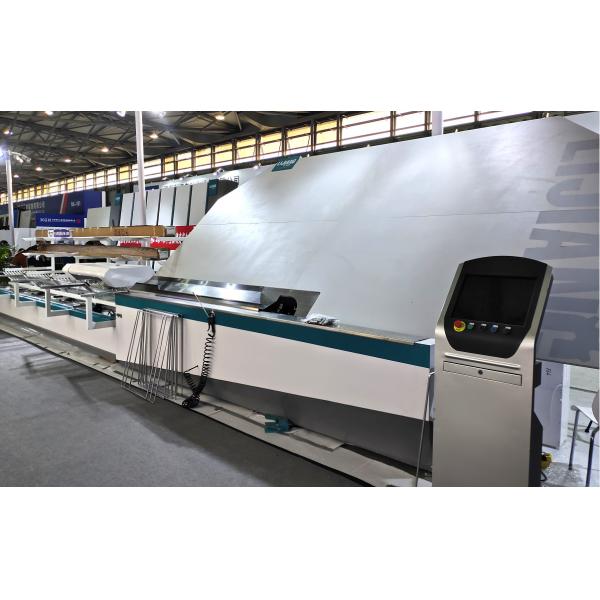

Full Automatic Aluminum Spacer Bar Bending Machine With Pre Heating

Automatic Warm Edge Spacer Bending Machine For Making Double Glazing Glass

1.Introduction of Automatic spacer bending machine

Automatic spacer bending machine is used to bend the spacer frame for the inside of double glazing glass, the spacer can use aluminum spacer, stainless steel spacer and warm edge spacer.

Spacer bending machine can read the dates from computer directly in office. There are eight different shapes of spacers available. Using PLC to control it.

Benefits of Automatic spacer bending machine

• Automatically cut and feed aluminum spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm edge spacer

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storage

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• USB input function, read the excel format file directly

• Connect to ERP system (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Automatically drill holes for filling argon gas (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A.

Different sizes of aluminum bars require different size tools(Optional)

Technical data of spacer bender

Electrical parameters

Insulating glass machinery manufacture products mainly include:

IG line series;

Automatic sealing robot series;

Vertical Insulating Glass Sealing Robot LJTJ2540

Main Features:

• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)

• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• With code scanning function (Optional)

Technical data

Electrical parameters

Low-e film edge deletion machine;

Spacer bending machine series;

Butyl extruder machine series;

Desiccant filling machine and other auxiliary insulating glass machines.

About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.

In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.

In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.

Our corporate vision:

To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
