Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper

    Buy cheap Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper from wholesalers

    Buy cheap Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper from wholesalers
    • Buy cheap Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper from wholesalers
    • Buy cheap Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper from wholesalers

    Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper

    Ask Lasest Price
    Brand Name : MENSION
    Model Number : MS-E180
    Certification : CE RoHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Sets Per Month
    Delivery Time : 2 - 7 Working Days
    Price : Contact Us
    • Product Details
    • Company Profile

    Hydraulic Hose Pressing Machine Hose Crimping Machine 2 Inch Hose Crimper

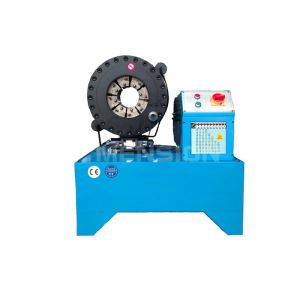

    HOSE PRESSING MACHINE MS-E180


    DESCRIPTION


    MS-E180 hose pressing machinery is suitable for industrial and hydraulic pressure oil hose up to 102mm (4 inch) inner diameter crimping. Max opening without die sets can be up to 167mm, so it is enable crimping big size industrial hoses or other tubes and pipes.

    MAIN FEATURES


    1. Large drive system, big capacity
    2. High accuracy with stable performance
    3. Advanced cylinder making technology
    4. Aluminium shell copper wire high efficient motor


    TECHNICAL DATA


    Model

    MS-E180 Pressing Machinery

    Crimping Range

    14 - 167 (mm)

    Crimping Force

    980 (T)

    Hose Size

    1/4 - 4 (inch)

    Max. Opening

    45 (mm)

    Die Sets

    18

    Die Set Type

    32 180

    System Pressure

    31.5 (Mpa)

    Accuracy

    0.01 (mm)

    Control

    MS

    Standard Voltage

    380 (V)

    Motor Power

    7.5 (KW)

    Length

    800 (mm)

    Width

    650 (mm)

    Height

    880 (mm)

    Weight

    510 (KG)



    E180 4 INCH CRIMPER DIE SETS


    Die No. #

    Crimping (mm)

    Length(mm)

    6*

    6.0 - 8.0

    55

    8*

    8.0 - 10.0

    55

    10*

    10.0 - 12.0

    55

    12*

    12.0 - 15.0

    55

    15

    15.0 - 18.0

    55

    18

    18.0 - 21.0

    55

    21

    21.0 - 24.0

    55

    24

    24.0 - 27.0

    55

    27

    27.0 - 33.0

    55

    33

    33.0 - 39.0

    75

    39

    39.0 - 45.0

    75

    45

    45.0 - 51.0

    90

    51

    51.0 - 57.0

    90

    57

    57.0 - 66.0

    100

    66

    66.0 - 73.0

    110
    7373.0 - 90.0110
    9090.0 - 96.0120
    9696.0 - 102.0120
    102102.0 - 108.0120
    108108.0 - 114.0120
    114114.0 - 123.0120
    123123.0 - 136.0120


    NOTE


    • " * " for non standard mold
    • Customized die set with special length, shape and diameter is available
    • Special voltage 110V, 208V, 240V, 415V, 440V are availbale
    • Quick change for mold is customized

    DETAILED PICTURES


    ► Cr12MOV master die and die sets, high hardness long service life



    ► Casting forging hydraulic oil cylinder, easy for daily maintenance low human cost



    ► Clear oil level ruler, make it more convinient for user



    INDUSTRIAL HYDRAULIC HOSE SAMPLES
