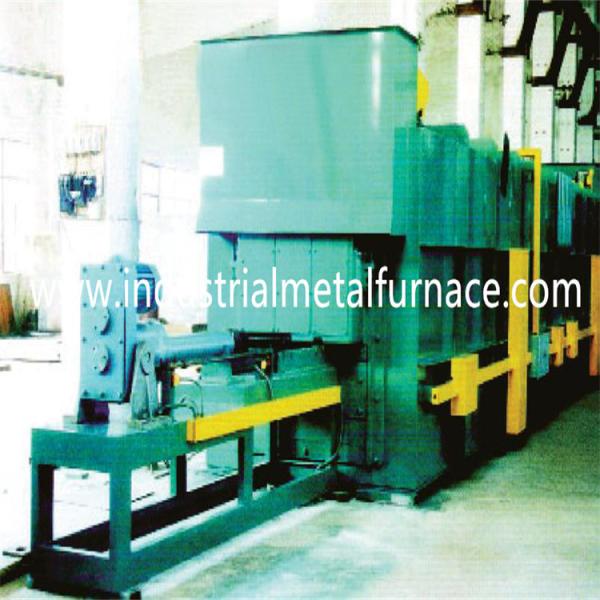

Push-rod Isothermal Spheroidizing Annealing Heat Treatment Furnace
1. Application
The push rod isothermal spheroidizing annealing heat treatment
furnace is applicable to
isothermal annealing of bearing inner and outer ferrule, and forged
parts.
2. Features
The push rod isothermal spheroidizing heat treatment furnace has a
high energy efficiency,
and a low power consumption rate.
3. Company Features
Our company has more than 30 years in manufacturing heat treatment
furnaces. We have full
range of heat treatment products such as mesh belt furnace, push
rod isothermal spheroidizing
annealing heat treatment furnace, pit type wire annealing
furnace,pit type carburizing furnace, stainless
steel vessel stress removing heat treatment furnace, etc. The
energy of the heat treatment furnace can
be gas or electricity. We could guide our customer about the heat
treatment process too.
4. Main Specifications and Parameters
| Model | Rated power (kw) | Rated temperature | Overall dimension (mm) | Trays | Production Capacity (kg/24h) | Total length(mm) |
| DWQH-1 | 120 | 820 | 640*560*65 | 16 | 180~200 | 10500 |
| DWQH-2 | 160 | 820 | 640*560*65 | 20 | 250~300 | 12800 |
| DWQH-3 | 200 | 820 | 640*560*65 | 24 | 450~500 | 15600 |
| DWQH-4 | 350 | 820 | 1000*800*65 | 17 | 650~750 | 19000 |
| DWQH-5 | 500 | 820 | 1200*1000*65 | 18 | 900~1000 | 22000 |
We are a professional supplier of mesh belt furnace. We have also
gas fired mesh belt furnace
for tempering, annealing, quenching, carburizing treatment.
