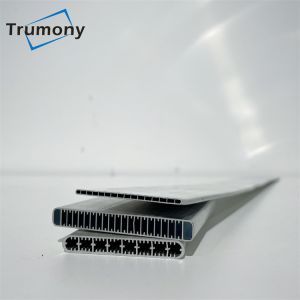

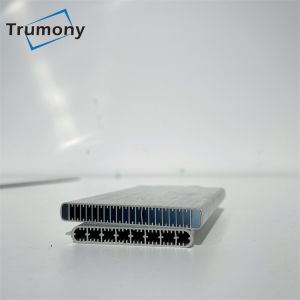

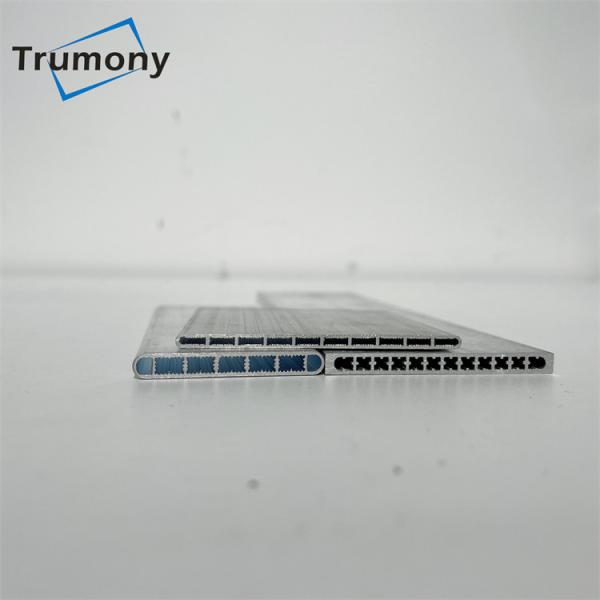

3003 6061T Extrusion Microchannel Tube for Automobile Condenser
Aluminum microchanne tube is also well known as aluminum flat tube,
which is widely used for aluminum condenser, radiators for car,
evaporator, oil cooler.
We have own tooling center, a lot of mold tooling are available,
which means no more extra mold cost.
R&D Department in house, we can provide design services.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1mm~5mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of pores | 3~30 |
It can be customized according to customers' request!
Applications:
Engine cooling and air conditioner system, such as radiator,
condenser, oil cooler and heater, evaporator.
Home appliances electrics industries, such as HAVC heat exchangers,
refrigerator, PTC heating unit, air conditioner;
New energy industry: Water cooling plate for EV battery / ESS
battery.
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this
industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples
(within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
