88m/S 2.0KN/M2 Steel Solar Structure Galvanized Ground Mounting System

Steel Ground Mounting System Solar Power Station Solar Photovoltaic System

Ground mount system, as its name suggests, are solar arrays that are anchored in the ground. Usually, the arrays are supported by steel or aluminum structures. It essentially hold a large number of stacked panels, often two and sometimes three or four panels high, and even more.

Two rails usually support each panel, whether oriented in landscape or portrait. The anchoring to the ground is the tough part of these installations, as there are many different types of foundations: driven piles, ground screws, concrete footings or a mixture of these components.

At present, Steel ground mount system is the most economical ground mounting system for large scale solar power station in the market.

Steel ground mount system makes the economical and reliable solution for photovoltaic projects become true.

According to different site conditions, Magnelis or Galvanized Steel steel is adopted as the main material to form a stable and cost-effective design. And good anti-corrosion protection, good corrosion resistance, can provide longer service life. Strong steel structure helps maximize the span between columns and thus decreasing the total quantity of supports Easy installation makes team of 4 professional labors can install 200KW within 1 day.

Technical Data

Installation steps

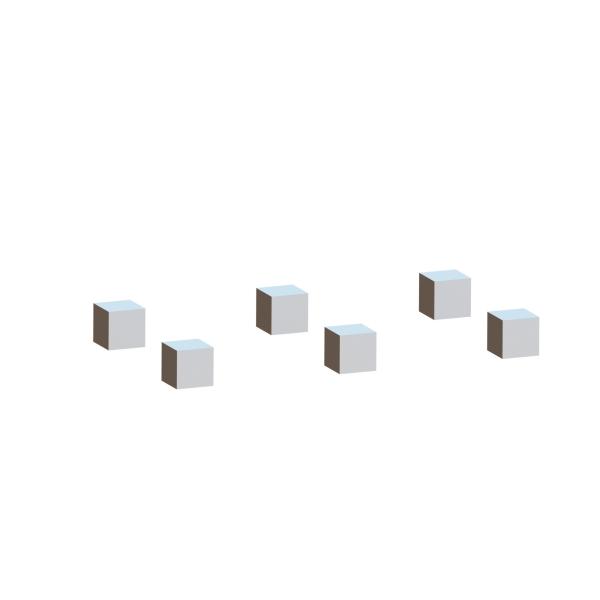

1. Foundation installation	2. Column installation	3. Beam installation
4. Rail installation	5. Panel installation	6. Complete

Steel Ground Mount System Components

Photo	Item No	Name	Product type	Product line
	HGDZ8	Column Foundation	Racking	MGC
	HG70500A	Column	Racking	MGC
	HGLJ8	Triangle joiner	Racking	MGC
	HG73200A	Beam	Racking	MGC
	HG74200A	Rail	Racking	MGC
	HG42700A	Rear tie	Racking	MGC
