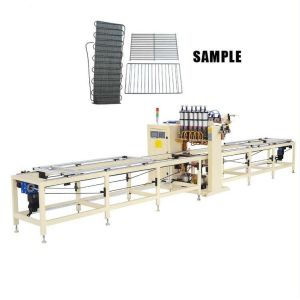

HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine

    Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers

    Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers
    • Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers
    • Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers
    • Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers
    • Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers
    • Buy cheap HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine from wholesalers

    HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine

    Ask Lasest Price
    Brand Name : Hwashi
    Model Number : WL-SP-150K
    Certification : CE
    Price : 13000
    Payment Terms : L/C, T/T
    Supply Ability : 50Pcs/M
    Delivery Time : 7-21 days
    • Product Details
    • Company Profile

    HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine

    Product Description

    Wire Mesh / Wire Shelf /Wire basket Production Line

    1. Wire Straightening and Cutting Machine

    2. High Speed Wire Straightening and Cutting Machine

    3. 2D wire bending Machine

    4. 3D wire bending Machine

    5. Wire frame Butt Welding Machine

    6. Wire frame T Butt Welding Machine

    7. Automatic Wire Mesh Welding Machine

    8. Wire Trimming Machine

    Machine 1 :Wire Straightening and Cutting Machine

    Normal Wire Straightening and Cutting Machine

    WL-RSW-6


    1) Suitable Wire Diameter: 2-6mm
    2) Straightens efficiency: 18 meter/minute
    3) Max Cutting Length 3000mm

    High Speed Wire Straightening and Cutting Machine for Φ3mm-Φ5mm wire and for Φ5mm-Φ7mm wire (2 models)


    1) Length Range:Cutting Precision
    2) Cutting Speed:Max. 350pcs/min
    3) Wire Straightening Speed:100m/min for Φ3mm-Φ5mm wire ,70-80m/min for Φ5mm-Φ7mm wire
    4) Cutting Precision:±0.5mm (except for accelerate and decelerate)

    Machine 2 :2D AND 3D Wire Bending Machine

    2D Wire Bending Machine

    Automatic 2D bending Machine for Φ4mm-Φ8mm carbon steel wire and Φ4-Φ7mm stainless steel wire
    1) 4 Axis
    2) Power of whole machine:8KW
    3) The max feeding wire speed:30m/min
    4) feeding wire tolerance:±0.5mm

    3D Wire Bending Machine

    Automatic 3 D bending Machine for Iron wire 7 axis
    1) Wire Diameter Range:Iron wire(Soft wire)3.0 -12.0 mm,Steel Wire(Hard wire) 3.0 -7.0 mm
    2) Feeding Wire Length:UNLIMITED
    3) Bending Angle:± 0.02°
    4) Maximum Feeding-wire Speed :70 m / min

    5) Maximum Bending Speed:3 turns / sec

    6) Positioning Accuracy:± 0.02°

    Machine 3 :Wire Butt Welding Machine

    Wire frame Butt Welding Machine

    Pneumatic AC Pulse Butt Welding Machine
    1) Wire diameter is 2.5-8mm.
    2) 75KVA AC welding power.

    Wire frame T Butt Welding Machine

    Double-Head AC T-Butt Welding Machine
    1)Wire diameter is 2.5-8mm.
    2)Frame size maximum is 800x800mm
    3)Adopt two sets of 75KVA AC welding power.

    Machine 4 :Wire Mesh Welding Machine

    Model 1

    Manual Wire Mesh Welding Machine

    1. Manual wire loading and welding machine;
    2. The number of electrode could be customized according to your requirement.
    3. Low in price
    4. Suitable for welding small wire mesh

    5. Low efficiency
    6. Suitable for 100mm-500mm wire mesh

    Model 2

    Single Head Welding Machine With X Y Axis Automatic Feeder
    1. Single Welding Electrode;

    2. Manual wire loading;
    3. X, Y axis automatic feeder and automatic welding
    4. Low cost
    5. Simple structure and easy assembly 6. Change fixtures for welding different sizes of wire mesh
    7. Suitable for wire mesh within 1mx1m

    Model 3

    Automatic Wire Mesh Welding Machine for mesh within 1mx3m
    1. Multiple welding electrodes;
    2. Manual wire loading;
    3. Automatic feeder and automatic welding
    4. Single power supply system
    5. Only one electrode can work at one time and take turns.
    6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working;
    7. Suitable for wire mesh whose width is within 1000mm, length is not restricted.

    Model 4

    Automatic Wire Mesh Welding Machine for mesh within 2mx3m
    1. Multiple welding electrodes;
    2. Manual wire loading;
    3. Automatic feeder and automatic welding
    4. Double power supply system
    5. Two electrodes can work at one time and take turns.
    6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.
    7. High efficiency ,High cost
    8. Suitable for wire mesh whose width is within 2000mm, length is not restricted.

    3:Automatic Wire Mesh Welding Machine for mesh within 1mx3m Maximum

    1. Multiple welding electrodes;
    2. Manual wire loading;
    3. Automatic feeder and automatic welding
    4. Single power supply system
    5. Only one electrode can work at one time and take turns.
    6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working;
    7. Suitable for wire mesh whose width is within 1000mm, length is not restricted.

    4:Automatic Wire Mesh Welding Machine for mesh within 2mx3m

    1. Multiple welding electrodes;
    2. Manual wire loading;
    3. Automatic feeder and automatic welding
    4. Double power supply system
    5. Two electrodes can work at one time and take turns.
    6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.
    7. High efficiency ,High cost
    8. Suitable for wire mesh whose width is within 2000mm, length is not restricted.

    Model 5

    Wire Mesh Automatic Welding Machine with automatic wire filling system

    1. Multiple welding electrodes;
    2. Automatic wire loading system;
    3. Automatic feeder and automatic welding
    4. Double power supply system
    5. Two electrodes can work at one time and take turns.
    6. Save labor force ,High automation level
    7. Cycle working


    Machine 5 :Wire Trimming Machine

    Wire Diameter: 2-8mm

    Wire Mesh Samples
    Our Service

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Certifications
    Our Company
    Packing & Delivery
    FAQ
