Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr

    Buy cheap Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr from wholesalers

    Buy cheap Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr from wholesalers
    • Buy cheap Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr from wholesalers
    • Buy cheap Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr from wholesalers
    • Buy cheap Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr from wholesalers

    Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr

    Ask Lasest Price
    Brand Name : JWE
    Model Number : JL10/JF10/JF12S
    Certification : ISO9001
    Price : $56/kgs
    Payment Terms : D/P, T/T, Western Union
    Supply Ability : 1000 Tons per year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

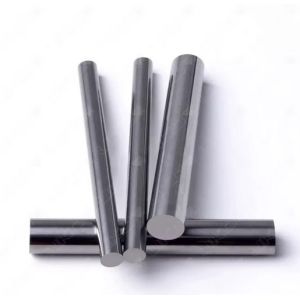

    Genuine Tungsten Carbide Round Bars Dia 3mm - 26mm Demonsion End mill Deburr

    Tungsten Carbide Rods With Coolant Hole Two Straight Hole Helix Coolant Hole


    Product Introduction

    Tungsten carbide rods used in make the drill bits, end-mills, reamers, automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc.


    Besides, they can bu used for making of cemented carbide stamping head, core bar and perforation tools. Both sintered blanks and ground tungsten carbide rod are supplied.


    1. Grade: ISO K10-K40
    2. Did: 3 mm-100 mm
    3. Length: 330 mm
    4. Surface: Unground or H6 Ground

    Carbide Rod With One Straight Hole

    Unit: mm

    Other custom size could be discussed.

    DLBTolerance
    3.0300/310/3300.3±0.1
    4.0300/310/3300.6±0.1
    6.0300/310/3301±0.15
    8.0300/310/3301.3±0.15
    10.0300/310/3302±0.2
    12.0300/310/3302±0.2
    14.0300/310/3302±0.2
    16.0300/310/3302±0.2
    18.0300/310/3303±0.25
    20.0300/310/3303±0.25
    22.0300/310/3303±0.25
    24.0300/310/3304±0.3
    26.0300/310/3304±0.3
    28.0300/310/3304±0.3
    30.0300/310/3305

    ±0.35

    Carbide Rod With Two Straight Holes

    Unit: mm

    DLBToleranceTKTolerance
    3.0300/310/3300.4±0.11.52±0.08
    4.0300/310/3300.8±0.11.72±0.08
    5.0300/310/3300.8±0.11.92±0.08
    6.0300/310/3301.0±0.12.90±0.1
    7.0300/310/3301.0±0.153.40±0.1
    8.0300/310/3301.0±0.153.85±0.15
    9.0300/310/3301.4±0.153.85±0.15
    10.0300/310/3301.4±0.154.85±0.15
    11.0300/310/3301.4±0.154.85±0.15
    12.0300/310/3301.8±0.155.85±0.15
    13.0300/310/3301.8±0.155.85±0.15
    14.0300/310/3301.8±0.156.85±0.15
    15.0300/310/3302.0±0.26.85±0.15
    16.0300/310/3302.0±0.27.85±0.15
    17.0300/310/3302.0±0.27.85±0.15
    18.0300/310/3302.0±0.28.85±0.15
    19.0300/310/3302.0±0.28.85±0.15
    20.0300/310/3302.5±0.259.80±0.2
    21.0300/310/3302.5±0.259.80±0.2
    22.0300/310/3302.5±0.2510.80±0.2
    23.0300/310/3302.5±0.2510.80±0.2
    24.0300/310/3303.0±0.2511.75±0.25
    25.0300/310/3303.0±0.2511.75±0.25
    26.0300/310/3303.0±0.2512.75±0.25

    Carbide Rod With Two Helix Holes

    Unit: mm

    DLBToleranceTKTolerancePitch
    ±0.5°
    3.0300/310/3300.4±0.11.6±0.116.32
    4.0300/310/3300.6±0.12.1±0.121.77
    5.0300/310/3300.7±0.12.4±0.227.21
    6.0300/310/3300.7±0.12.4±0.232.65
    7.0300/310/3301±0.153.5±0.238.09
    8.0300/310/3301±0.153.8±0.243.53
    9.0300/310/3301.4±0.154.5±0.348.97
    10.0300/310/3301.4±0.154.5±0.354.41
    11.0300/310/3301.4±0.154.9±0.459.86
    12.0300/310/3301.4±0.155.85±0.465.3
    13.0300/310/3301.75±0.26.1±0.470.74
    14.0300/310/3301.75±0.26.7±0.476.18
    15.0300/310/3301.75±0.27.3±0.481.62
    16.0300/310/3301.75±0.27.9±0.487.06
    17.0300/310/3301.75±0.28.5±0.492.5
    18.0300/310/3302±0.259.15±0.497.95
    19.0300/310/3302±0.259.7±0.4103.39
    20.0300/310/3302±0.259.9±0.5108.83
    22.0300/310/3302±0.2511.1±0.5125.15
    25.0300/310/3302±0.2512.8±0.5136.05

    Production Tools:




    Production and Test of Tungsten carbide Rods:


    1. The mixture of carbide powders will start to prepare as per the customer’s requirement with our wet-grinding machine.


    2. Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with a micrometer to ensure that the requirements of the drawings can be met before batch production.


    3. Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semifinished inspection.


    4. sinter blanks to finish (HIP) and finished products' inspection to ensure the best quality and production capacity.


    Quality Control:


    1. Each rod will be a drop from a 1.2 m high place.
    2. All raw materials are tested in terms of density, hardness, and TRS before use.
    3. Every piece of product goes through in-process and final inspection.
    4. Every batch of product can be traced.
    Q & A:

    Q1 : Are you manufacturer or trading company ?

    We are manufacturer of tungsten carbide products.


    Q2: Where is your factory located ?

    We are located in Zhuzhou city, Hunan province where is 2 hours-driving from Changsha airport.


    Q3: Is the price Competitive?

    JWE provides reliable products with good price, if you have long-term and stable purchase plan, we offer an exclusive agreement with you.


    Q4: Are the products in High Quality?

    Yes. Raw material will be tested before bulk production, and we will check the phys-ical properties, shape and tolerance for ensuring qualified products before shipping.


    Q5: How to place an order of tungsten carbide products?

    1. Fill your Order List with details in this online Inquiry System.

    2. You can directly contact our salesperson by E-mail / WhatsApp (sales2@jwecarbide.com / +8613786351707)


    Q6: How can we trust your company ?

    We support Alibaba trade insurance , 100% products quality protection, 100% on-time shipment protection, 100% payment protection for your covered amount.


    Q7: What’s your delivery time ?

    For the normal type which we have mold it takes two weeks after receiving the advance payment.
    For the non-standard products which we do not have mold it takes 4 to 6 weeks when receiving the advance payment.
