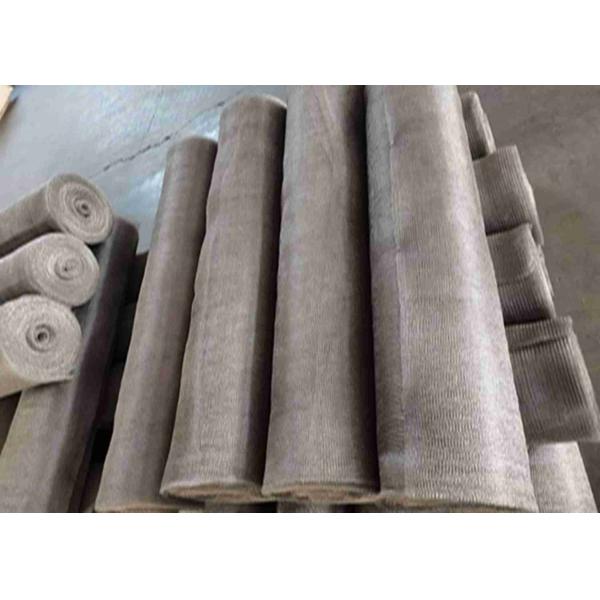

Galvanised Steel Knitted Wire Mesh 0.1 To 0.55 Widely Used In
Demister And Silencer Making
Introduction

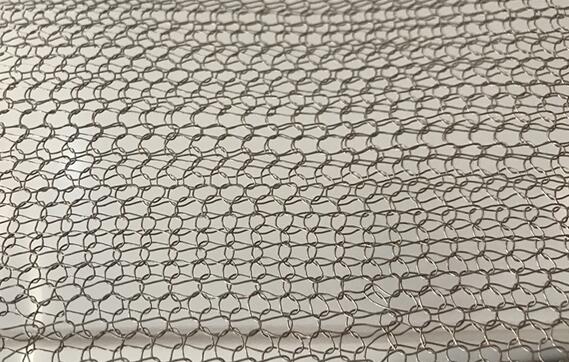

Knitted Mesh is a special knit woven wire widely used in demister
and silencer making. The final structure is of inter-connecting
loops, similar to a long knit sock. We supply monofilament,
multi-filament, co-knit and multi-strand knitted wire meshes
processed from flat or round wire.
Typical applications: Knit wire mesh is major filter screen
material, used in oil-gas separator, dust removing, mist removing,
engine silencers, mechanical damping, also making of scourers.
Typical materials: Galvanized steel, Monel, Stainless steel
AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L, Inconel, brass,
copper, metal alloys.
Wire diameter sizes: 0.10 ~ 0.55mm
Typical Filtration Grades:
Standard;
High efficiency;
Strong penetration;
Damping.
Specifications:
Opening Sizes: from 1mm x 1mm to 10mm x 10mm.
Wire Diameters: from 0.1mm to 0.45mm.
Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm,
600mm, etc.
Roll Length: 15m, 30m, 50m to 200m.
Item | Hole Number | Wire Diameter(mm) |
Standard Knitted Wire Mesh | 40-100 | 0.23,0.25,0.27,0.28 |
60-180 | 0.23,0.25,0.27,0.28 |
140-400 | 0.1*0.4 |
D--Wire Diameter; W1,W2, H--Hole Opening |
Item | Hole Number | Wire Diameter(mm) |
High Efficient Knitted Wire Mesh | 70-100 | 0.23,0.25,0.28 |
80-100 | 0.1*0.3 |
90-100 | 0.1-0.3 |
D--Wire Diameter; W1,W2, H--Hole Opening |
Item | Hole Number | Wire Diameter(mm) |
High Penetrated Knitted Wire Mesh | 20-160 | 0.15,0.23,0.28 |
30-150 | 0.15,0.23,0.28 |
70-400 | 0.15,0.23,0.28 |
D--Wire Diameter; W1,W2, H--Hole Opening |
Common Specifications of Knitted Wire Mesh |
Wire Diameter (mm) | Opening Size (mm) | Width (mm) | Length (m) | Number of Wires (Nos.) |
0.10 | 1.0-3.0 | 3-50 | 10-200 | 1-3 |
0.11 | 1.0-3.0 | 3-80 | 10-200 | 1-3 |
0.12 | 1.0-3.0 | 3-80 | 10-100 | 1-3 |
0.15 | 1.0-3.0 | 9-120 | 10-100 | 1-3 |
0.17 | 1.0-3.0 | 9-120 | 10-50 | 1-2 |
0.19 | 1.0-3.0 | 15-120 | 10-50 | 1-2 |
0.21 | 3.0-7.0 | 15-120 | 10-50 | 1-2 |
0.23 | 3.0-7.0 | 40-1000 | 10-50 | 1-2 |
0.25 | 3.0-7.0 | 40-1000 | 10-50 | 1-2 |
0.27 | 3.0-7.0 | 60-1000 | 10-50 | 1 |
0.28 | 3.0-7.0 | 60-1000 | 10-50 | 1 |
0.30 | 3.0-7.0 | 60-1000 | 10-50 | 1 |
KNITTED GALVANIZED WIRE MESH ROLLS
Material: Galvanised Steel
Width: 75mm
Length: 10m, 12m and 14m rolls
KNITTED MESH FABRIC, GALVANIZED BRIGHT
Knitted wire in rolls, 40 needles, 8 cm high, arround 6 kg/ roll, 4
rolls/ pvc bag
Made from: Electro Galvanized steel bright wire thickness 0.05 x
0.75 mm width, 20 gram zinc coated, Tensile strength 800-1000 N/m2
KNITTED MESH STRIP
Wire material: Galvanised mild steel wire
Diameter: 0.24 mm
Stitch number: 50
Strip width: 120mm
Features:
Galvanized mesh scrubbing pad features:
1) Not easy to change shape
2) Long live and not easy to change shape
3) Bright and shining, without smell
4) Well winding
5)Powerfull cleaning function
Zinc Plated Bright Scrubbing Wire:
Material: High quality low carbon steel wire or Q195
Wire gauge: 8#-28#(4.0mm-0.37mm)
Unit weight: 12g, 15g, 18g, 19g, 20g, 25g, 40g, 50g, 80g, 100g,
etc,as per client's request.
Uses: For kitchen and housewares cleaning and scrubbing
Applications:
It can be used in the cable shields as a chassis grounding and
electrostatic discharge;
Stainless steel knitted mesh can be installed onto the machine
frames for EMI & RFI shielding industries, for elastomer cores and
cable wrap;
It can be made into knitted mesh mist eliminator for gas and liquid
filtration;
Stainless steel knitted mesh has outstanding filtering efficiency
in various filtration device for air, liquid and gas filtration.
