    XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : JZM500 JZM1000 JZM1500 JZM2000
    Certification : CE ISO9001
    Price : USD14000-15000
    Payment Terms : L/C, T/T
    Supply Ability : 50set per month
    Delivery Time : 15-22days
    • Product Details
    • Company Profile

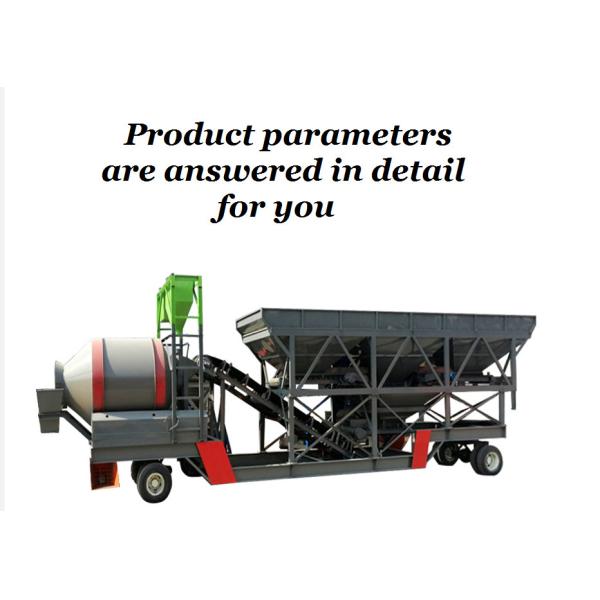

    XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw

    The drum type mixing plant is introduced in detail:
    a. Tires: Double tires, strong pressure bearing capacity, strong stability, non-slip.
    b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
    c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
    d. Storage hopper base: moved from the middle to the front generating two advantages:
    a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
    b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.
    e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely,work on the supporting legs, No foundation needed.

    Features

    1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded,
    except the external equipment such as screw conveyor and cement silo, etc.
    2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
    3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
    4.Top-quality configuration, high reliability, accurate measurement, easy operation.
    Configuration
    JZM750
    JZM1000
    JZM1500
    JZM2000
    Productivity
    35 m³/h
    50 m³/h
    75 m³/h
    120 m³/h
    Weigh hopper
    1200L
    1600L
    2400L
    3200L
    Total weight
    13t
    14t
    14.5t
    26t
    Total Power
    46kw
    60kw
    67kw
    77.5kw
    Horizontal cement silo (optional)
    50T*1
    50T*1
    50T*1
    70T*2
    Screw conveyor
    LSY219*6M
    LSY273*8M
    LSY273*8M
    LSY273*8M
    Weighing system
    Cement weighing. water weighing.additive weighing
    Pneumatic system Fully automatical control system

    1. Mainframe chassis A cantilever-shaped mixer chassis, the chassis contains trailer truck traction pins and parking legs; the chassis is placed on the mixer, the measuring scale of cement and water admixtures; the surrounding inspection platforms, railings, etc. are attached.

    2.control box Mobile concrete: soil mixing plant, the control room is used as the front support point of the whole station when it is working, and the control room is stowed away and stored in the space of the bracket during transportation; all its control lines do not need to be disassembled.
