3P AC EV Chargers Residential Level 2 32A With Ground Mounting Pole

Name: 3P AC EV Chargers Residential Level 2 32A With Ground Mounting Pole
Brand: Hongshunjin
Price: 1 USD

Ask Lasest Price
Brand Name :	Hongshunjin
Model Number :	CB32A-M3
Certification :	CE RoHS FCC
Price :	＄ $374.51-$394.35 Pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 pieces Per week
Delivery Time :	10-60 work days

Add to Cart

Product Details
Company Profile

3P AC EV Chargers Residential Level 2 32A With Ground Mounting Pole

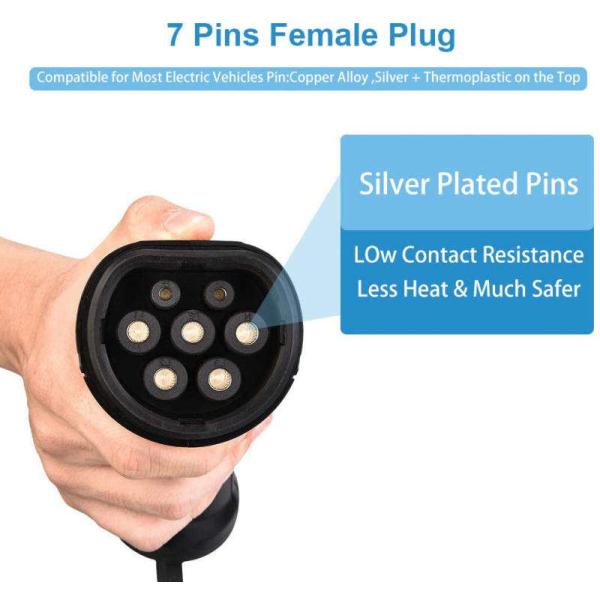

EV Charger Ocpp Mennekes Type 2 32a 3 Phase 7kw 22kw Wallbox Car ev station

About us

we have assembled three closely related factories to produce new energy charging equipment. The Chinese government undertakes projects, focusing on the research and development of wall-mounted charging stations and DC floor-standing charging stations, which can give you sufficient quality and after-sales technical support. The attachment is our product catalogue. We provide you with several options for your purchasing needs.
In addition, for OEM customization, we can provide logo printing and outer packaging customization for free, and can also perform CMS testing for you. Our factory is in Shenzhen, the transportation is very convenient, there are DHL, UPS, etc., which can help you receive the product within 5-8 days.

All products must pass the following inspection before leaving the factory:

1. Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2. Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3. control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message match test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.

Benefit

EV Charger Model	CB32A-M3 (Type 2 wall mount 22KW ev charger)
Version	Home Charger (please contact if need the commerical ev charger)
Electric Features
Input	340-460VAC, 50/60Hz
Max Output Power	22kW (three phase)
Max Output Current	32A
Standard Cable length	5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature	-25℃ ~ +85℃
Operation Temperature	-20℃ ~ +65℃
Relative humidity	0-95% non-condensing
Maximum altitude	<2000m
Waterproof Class	IP65
Cooling Method	Natural Air Cooling
Mounting way	Wall-mounting bracket/Ground-mounting pole (optional)
Function & Accessories
RFID	Yes(with NFC)
LCD	4.3-inch color display(3.0-inch display area )
RCD	Type A / Type A+6mA
LED Indicator light	Yes
Intelligent Power Ajustment	Yes
Ethernet / WIFI / 4G	Optional
Certification	CE RoHS
Machanical Drawing
Measures (LxWxH)	340x240x120mm (excluding the metal stand )
N.W./G.W.	12KG / 13KG
Master Carton Packing	540x340x180mm (LxWxH), 1pc each carton

Our main products are 7KW/11KW/22KW AC charging piles
There are also 60KW/80KW/120KW/160KW DC charging piles
3. Portable charging gun of 5KW/7KW/11KW, etc.
We also support OEM
Are you interested in our products? Looking forward to your reply ~
