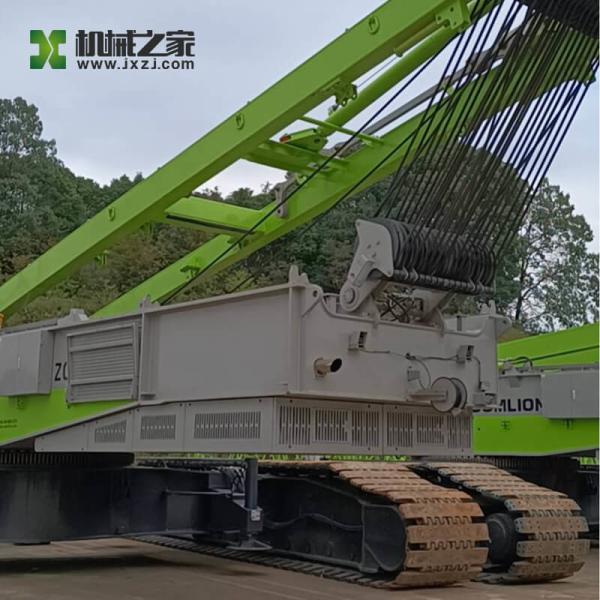

Zoomlion ZCC5000 Second Hand Crawler Cranes 500 Ton Second Hand

Used Zoomlion Crawler Crane Zoomlion ZCC5000 Second Hand Crawler Crane

Production Details:

1. Strong lifting capacity:

1) The comprehensive lifting performance is higher than that of products of the same tonnage.

2) The wind power conditions meet the hoisting of 100m 3MW wind turbines and 120m 2.0MW~2.5MW wind turbines.

2. Wide range of construction applications:

The working conditions are fully configured, and special wind power and shield working conditions are set up, covering large-scale construction fields such as wind power, thermal power, petrochemical, shipbuilding, subway, and water conservancy.

3. Convenient and efficient disassembly and assembly, which can be transported globally:

1) The installation and disassembly of equipment is 20% faster than that of similar products.

2) The maximum transport weight of a single piece is 48.6t.

4. New intelligent functions and improved security control:

Added crane equipment management, statistical reports, maintenance, fault alarm, equipment positioning and other functions on the mobile APP to improve equipment management and operational efficiency.

5. New and comfortable control room:

1) Full view, large operating space, all-round air-conditioning outlet, comfortable and cool indoor temperature.

2) The operation switch buttons are centrally arranged, within easy reach and easy to operate.

This machine was manufactured in December 2020. Worked more than 1,000 hours, with National 3 emissions, original factory maintenance, and excellent performance. Welcome to consult if you need it.

Product Parameters:

Item		Value	Remark
Max. lifting capacity/range	Standard (t×m)	500×6
	Superlift (t×m)	500×12
Heavyweight main boom	Standard (m)	24～90
	Superlift (m)	36～96
Lightweight main boom	Standard (m)	48～108
	Superlift (m)	78～126
Self-weight with basic boom (t)		370
Luffing jib length (m)		24～84
Max. lifting capacity of luffing jib	Standard (t×m)	190×13
	Superlift (t×m)	235×16
Working angle of main boom in luffing jib condition (°)		65,75,85
Long main boom +Long luffing jib	Standard (m)	60＋72
	Superlift (m)	84＋84
Standard condition wind power boom	Main boom (m)	84～108
	Wind power boom (m)	7
	Max. lifting weight (t×m)	126×16
Reel Single rope Speed	Main lift (m/min)	0～137
	Auxiliary hoist (m/min)	0～137
	Amplitude (m/min)	0～50
	Jib luffing (m/min)	0～123
	Super fluctuation (m/min)	0～143
	Goose head lift (m/min)	0～109
Rotation speed (rpm)		0～1.0
Walking speed (km/h)		0～1.0
Max. climbing ability with basic main boom (%)		30
Average grounding specific pressure with basic boom (MPa)		0.139
Host transport dimensions L×W×H (mm)		12180×3345×3205	without mast
Single piece maximum shipping weight (t)		48.6
Engine	Power/speed (kW/rpm)	360/1800
	Torque/Rotation (Nm/rpm)	2200/1300
	Emission Standards	EU Stufe 3A
Track gauge × ground length × track shoe width (mm)		8000×9800×1350
