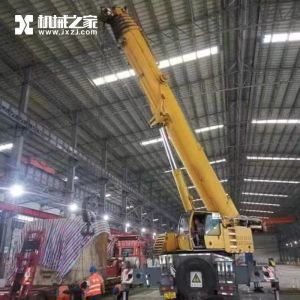

General parameters
| | | | | |
| Device model | LTM 1160-5.1 | QAY1200 | SAC6000 | QAY500 | QAY800 |
| Model abbreviation | 1160 | 1200 | 6000 | 500 | 800 |
| Engine | | | | | |
| Model | Liebherr, 4-cylinder, turbo diesel engine | OM460LA.E3A/5 (OM502LA.E3A/1) | Benz OM 906 LA | OM906LA | OM502LA.E3A/1 |
| Rated power(kW/r/min) | 145 | 260/1800(480/1800) | 205/2200 | 205/2100 | OM502LA.E3A/1 |
| Rated torque(N·m/r/min) | | 1750/1300(2800/1100) | 1100/1400 | 1110/1200～1600 | 2800/1300 |
Quality parameters
| | | | | |
| Vehicle curb weight (kg) | | 96000 | | | |
| Driving state self-weight (total mass) (kg) | 60000 | 95000 | 96000 | 96000 | 93900 |
| Axle load per bridge(kg) | | 10800×3+11170+10870 +10650+9970×3 | 8×12000 | 12000×8 | 12000×5+11300×3 |
Working parameters
| | | | | |
| Max. rated gross lifting weight(kg) | 160000 | 1200000 | 600000 | 500000 | 800000 |
| Outrigger span (vertical × horizontal)(m) | | 13(13.045)×13(9.846) | 10.8X10.8 | 10.125×9.6(6.5) | 12.8(10.7)×13(9.8) |
| Basic boom length (m) | | 20 | | 16.1 | 16.8 |
| Max. lifting moment of basic arm (kN·m) | | 35280 | 18228 | 15190 | 24000 |
| Max. lifting height of basic boom(m) | | 20 | 136 | 17.5 | 18.4 |
| Longest main boom (m) | | 105 | | 84 | 84 |
| The longest main arm + jib (m) | | 117 | | 56/91 (optional) | |
| Max. lifting moment of the longest main boom (kN·m) | | 3600 | | | |
| Max. lifting height of main boom (m) | | 105 | | 84.2 | 85.8 |
| Max. lifting height of jib (m) | | | | 39.8 | 19.5 |
Working speed
| | | | | |
| Max. speed of the main hoist single rope (m/min) | | 126(no load) | 130 | 170(the outermost working layer) | 110(the outermost working layer) |
| Auxiliary hoist single rope Max. speed (m/min) | | 104(no load) | 130 | 170(the outermost working layer) | 110(the outermost working layer) |
| Boom raising/lowering time (s) | | 200 | 110/110 | 125 | 115 |
| Boom full extension/full retraction time (s) | | 2200/2000 | 1100/1100 | 960/900 | 1200/1100 |
| Horizontal outrigger extension/retraction time (s) | | | | 60/40 | 35 |
| Vertical outrigger extension/retraction time (s) | | | | 60/45 | 75 |
| Rotation speed (r/min) | | 0.85 | 0.9 | 0.8 | 0.6 |
Traveling parameters
| | | | | |
| Max. travel speed (km/h) | 80 | 75 | 75 | 80 | 75 |
| Max. grade (%) | | 40(95t) | 37.4 | 35(96t) | 40 |
| Approach angle (°) | | 12 | 12 | 13 | 12 |
| Departure angle (°) | | 28 | 18 | 15 | 28 |
| Min. turning diameter (m) | | 30 | 29 | 30 | 29 |
| Min. ground clearance (mm) | | 278 | | 330 | 280 |
| Braking distance (m) | | ≤10 | ≤10 | ≤10 | ≤10 |
| Fuel consumption/100 kms (L) | | 110 | | 105 | 110 |
Machine parameters
| | | | | |
Dimensions (L×W×H) (mm) | | 20490*3000*4000 | 22745X3000X4000 | 20900×3000×4000 | 19420*3000*4000 |
| Longitudinal distance of outriggers (m) | | 13(13.045) | 10.8 | 10.125 | 12.8(10.7) |
| Outrigger lateral distance (m) | | 13(9.846) | 10.8 | 9.6(6.5) | 13(9.8) |
| Main boom length (m) | | | 90 | | 84 |
| Main boom elevation angle (°) | | | | | 83 |
| Jib length (m) | | | 6－42 | | 98 |
| Jib installation angle (°) | | | | | |
| Wheelbase (m) | | 1500+2170+1500+1630 +1500+3730+3260+1500 | | 1650+1650+2900+1650 +1650+2350+1650 | 1480+2100+1480+ 1480+3910+3050+1480 |
| Tire distance (m) | | 2590 | | 2540 | 2590 |
| Gradeability (%) | | 40(95t) | 37.4 | 35(96t) | 40 |
| Ground specific pressure (Kpa) | | | | | |
Chassis
| | | | | |
| Model | | | Benz | | Benz |
| Type | | | | | |
| Engine model | Liebherr, 6-cylinder, turbo diesel engine | OM502LA.E3A/1 | Benz OM 502 LA | OM502LA.E3A/1 | OM460LA.E3A |
| Engine rated power (kW/r/min) | 370 | 480/1800 | 480/1800 | 480/1800 | 260/1800 |
| Max. engine output torque (N·m/r/min) | | 2800/1100 | 3000/1300 | 2800/1300 | 1750/1300 |
