    JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : JZC350 JZC500 JZC700
    Certification : CE ISO9001
    Price : USD2250-USD4580
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 set per months
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H

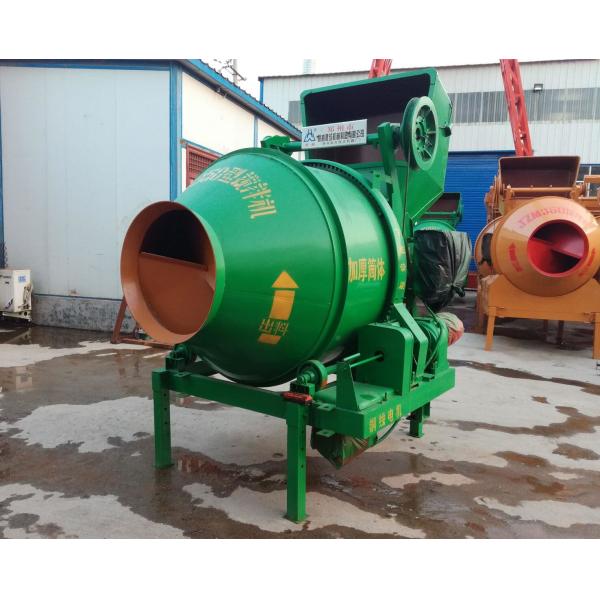

    JZC series drum concrete mixer

    JZC series are self-falling drum concrete mixer with positive rotation and reverse discharge ,it can mix plastic and semi-dry concrete evenly. Mixers are light weight and has two wheels for easy moving on the road. It is a kind of bipyramid reversal discharging mixer machine; the drum is driven with the gear; during working, It is mixing in positive rotation and discharging in reversal revolution. It can mix the plastic and half-dry hard concrete. It is applicable to the common construction working site, road, bridge and each kind of precast product factory. The hopper falls below the ground (full climbing machine), which can reduce the labor intensity of the loading workers. If it is used with a matching batching machine, it can form a simple electronic metering mixing station. Compared with the semi-climbing mixer, it reduces the load of the main engine mixing reducer and increases the reducer for lifting the hopper.


    Specifications


    Model
    JZC350
    JZC500
    JZC750
    Discharging capacity(L)
    350
    500
    750
    Feed capacity(L)
    560
    800
    1200
    Charging capacity(L)
    560
    800
    1200
    Productivity(m3/h)
    10-14
    18-20
    25-30
    Drum rotating speed(r/min)
    14
    13
    12
    Max. aggregate size(mm)
    40-60
    60-80
    60-80
    Water feeding precision(%)
    ≤2
    ≤2
    ≤2
    Mixing motor(kw)
    5.5
    7.5
    11
    Hoisting motor(kw)
    4.5
    5.5
    5.5
    Water pump motor(kw)
    0.55
    0.75
    1.1
    Overall dimensions(mm)
    2760*2170*2780
    3320*2460*3650
    3810*2120*3730
    Total weight(kg)
    1950
    2600
    3200

    Features
    1.Self-falling and advanced movable concrete mixer&easy to control

    2.Mixing evenly and produce high quality concrete

    3.compact structure & light weight

    4.Easy moving with two wheels itself

    5.Different model and design to meet
    client’s independent demand
