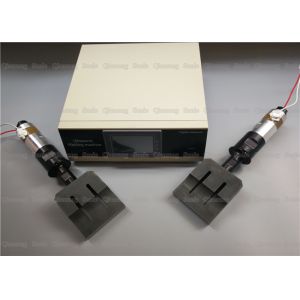

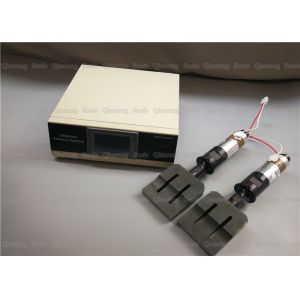

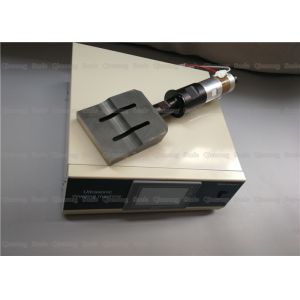

20Khz 2000w Ultrasonic Welding Parts for Making Surgical Gowns
Description:
QRsonic provides ultrasonic accessories for Surgical Gowns
stitching. 20Khz 2000W Ultrasonic welding machine which is also named ultrasonic sewing
machine is an efficient suture, embossing device. It is mainly used
for the seam edge, fusion edge, melt cutting, embossing of
synthetic fiber fabrics. The processed products have good water
tightness, high production efficiency, no needle thread
accessories, smooth melted surface without burrs and good hand
feeling.
The high-frequency oscillation is used to transmit the sound wave
to the welding surface of the workpiece by the welding head, and
the molecules of the workpiece are instantly rubbed to reach the
melting point of the plastic, so as to complete the rapid
dissolution of the solid material and complete the welding; the
strength of the joint is close to that of a whole piece of
continuous material. , as long as the joint surface of the product
is designed to match, it can be completely sealed and welded.
Specifications:
| Classification | QR-20K |
| Frequency | 20Khz |
| Power | 2000w |
| Voltage | 220V |
| Generator | Digital generator |
| Material of Horn | Steel |
| Dimension of horn | 110*20mm |
| Net weight of horn | 5.5kgs |
| Dimension of generator | 380*130*350mm |
| Net weight of generator | 6kgs |
| Package | Wooden case |
| Application | Non woven mask welding |
Features of Ultrasonic Sewing machine:
Ultrasonic Sewing machine has high conversion rate and long life
1. The power and frequency of the ultrasonic lace machine adopts
the analog pulse high-frequency oscillation form, which can observe
the change of power and frequency at any time, and provides an
accurate basis for controlling and detecting ultrasonic waves.
2. Wide frequency tracking technology: When the output frequency of
the ultrasonic generator does not match the frequency of the
transducer, it not only affects the experimental effect, but even
damages the device when the deviation is large. Therefore, we use
frequency tracking technology to make the output frequency of the
ultrasonic generator always match the frequency of the transducer,
thus ensuring the quality of stitching and embossing, and greatly
extending the life of the ultrasonic generator and the transducer
device.
