Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier

    Buy cheap Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier from wholesalers

    Buy cheap Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier from wholesalers
    • Buy cheap Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier from wholesalers
    • Buy cheap Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier from wholesalers
    • Buy cheap Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier from wholesalers

    Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier

    Ask Lasest Price
    Model Number : 9.5mm
    Payment Terms : T/T
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Smooth 1350 Type Aluminium Wire Rod 9.5mm maufacture and supplier

    1350type aluminium rod 9.5mm


    RAW MATERIAL SPECIFICATION FOR ALUMINUM RODS

    1.Scope
    This specification covers the requirement of aluminum wire rods to be used to strand overhead conductors with or without steel reinforcement.
    2. Quality requirement
    The wire rods shall be smooth and round. The surfce shall not have any flows, scratches, twists seams, scales and splits. It shall have no cavity and blow holes. There shall be no joint in the coil.
    3. Material
    The wire shall be from electrical conductor grade containing 99.5% aluninum.
    The aluminum should confirm to IEC -28 and ASTM B 233 standard
    Total impurities of all metal shall not exceed 0.5 % in accordance with the following table:
    Si0.25%Mg
    0.05%
    Zn0.07%Cu0.05%
    Mn0.05%Fe0.4%

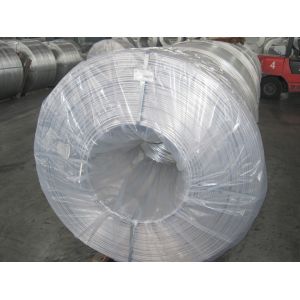

    Packing
    The rods shall be delivered in tightly- wound coils each secured by means of minimum six hoop iron strips to prevent displacement during transport, and wrapped with polyetylene or suitable wrapping material and put with vertical axis on wooden pallets consisting of minimum four timber battens for easy handling and storage. Coil net weight: 1500-2000 kg
    Each coil should have a metal tag indicating:
    Rod diameter
    Net and gross weight
    Serial number of coil Manufacture and packing dates
