Main Features:
1. Refrigerant gas: R404A,R22,R507
2. Cooling type:air cooled
3. Tube ice external diameter: 22mm, 28mm and 35mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making
time
-Length: 25mm-50mm
- We can make the size according to your requirements.
4. standard ambient : 30 °C, water temp: 25 °C
5. All the components are adopted from professional suppliers,
result in excellent efficiency and stable running.
Decription:
1. Variety of production specification, variety of tube size to
fulfill to different application;
2. With high density, ice purity and not easy to melt, especially
tube ice is very beautiful. Tube ice is popular in
catering&beverage and food fresh keeping. The ice is very
common in our daily life and commercial using.
3. Self-design, self-production, optimize every processing works,
make the machine a perfect performance.
4. Water Distributors: Made up of elastic material which creates a
continuous uninterrupted peripheral seal between the tube ends and
water distributor.
Specification:
| Name | Technical Data |
| Ice production | 5ton/day |
| Refrigeration capacity | 35KW |
| Evaporating temp. | -15℃ |
| Condensing Temp. | 40℃ |
| Total Power | 25.2kw |
| Compressor Power | 22KW |
| Ice cutter Power | 0.75KW |
| Water pump Power | 0.75KW |
| Air cooled power | 1.65KW |
| Net weight | 3210kg |
| Refrigerant gas | R404A/R22 |
| Cooling mode | Air cooled |
| Standard Power | 3P-380V-50Hz |
| Ice tube diameter | Φ22mm/28mm/35mm |
| Ice length | 30 ~ 45MM |
| tube ice weight density | 500~550kg/m3 |
| Evaporator type | Stainless steel seamless steel pipe |
| Ice tube material | SUS304 stainless steel |
| Water tank material | SUS304 stainless steel |
| Ice cutting blade material | SUS304 stainless steel |
| Dimension of tube ice machine | 1900*1000*2080mm |
| Dimension of air cooled condenser | 2646*1175*1260mm |
Product Advantage:
1. High reliability and low fault failure
80% components of the tube ice maker system are world famous
brand.Through decades of research and practice,it can run
continuously without fault and keep good run and stable ice output
even in ambient temperature 5°C-40°C.Special designed machine can
even allow normal run in the most atrocious conditions(-5°C-+56°C)
2. Scientific design and advanced processing technique
Scientific design and can also make the best ice making system
according to customers actual demand, with world leading ice making
technology and processing and testing equipments .Each part is
processed with strict technique requirement and strictly tested
before using.
3. Efficient performance: tube ice evaporator adopt SUS304, PE, and aluminum material and
with special heat treatment, make the tube ice evaporator with best
thermal performance.
4. Full automatically control: PLC system controls the whole ice making process, PLC program
Logic Controller, which allows multiple functions such as automatic
machine start and shut down; ice falling automatically when the
freezing time is ensured, Automatic water making up.
5. High durability, minimum maintenance

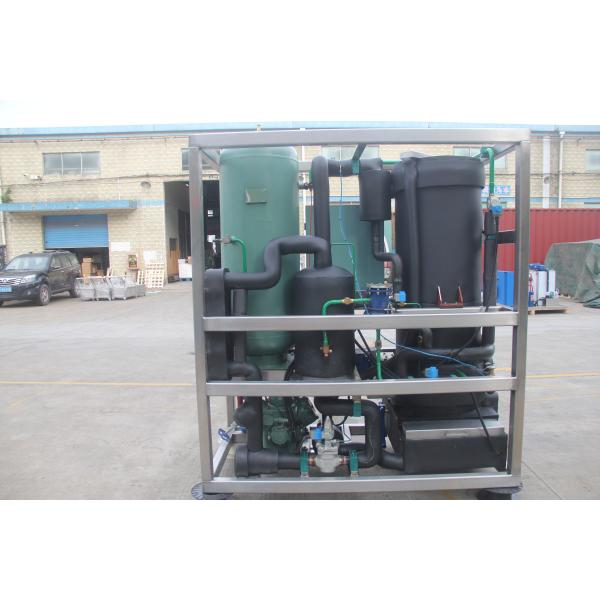

Product image:
Our Partner:
The company has a construction team with extensive overseas
installation experience, and they have bulit more than 50
large-scale projects worldwide.
FAQ:
1.Do you test the ice machine in your factory?
Yes, ice machine leaves factory with carefully examination after it
was produced for 3 to 5 days. And when we install them at
customer’s factory, we retest the ice machines.
2. Can you load ice machine into container?
Our export ice machine is designed based on the standard of
container, it is easily to load.
